List

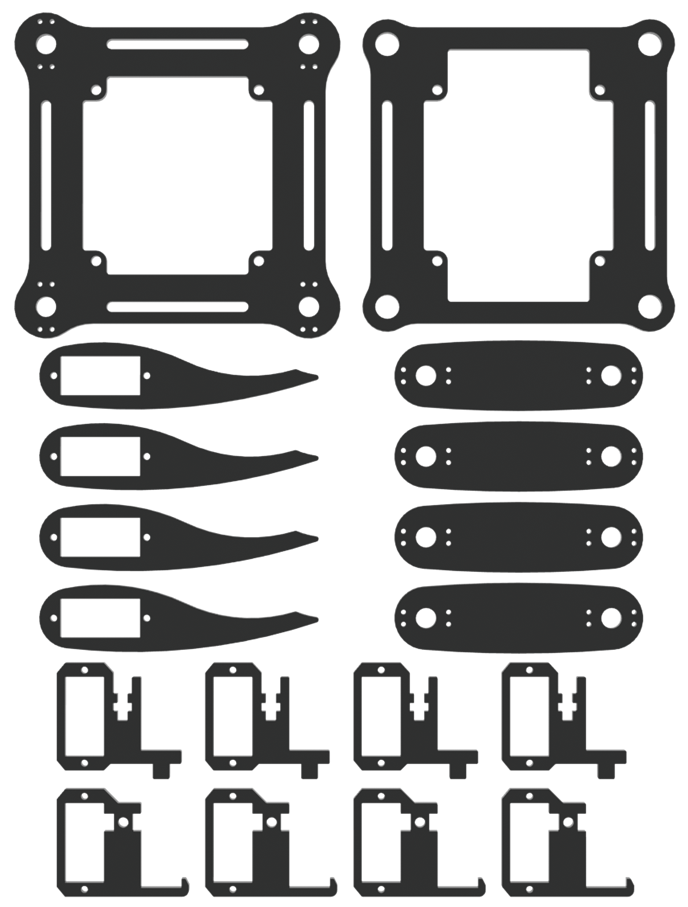

Acrylic Parts

../../../_images/List00.png

The surface of the acrylic parts is covered with a layer of protective film, you need to remove it first.

Some holes in the acrylic parts may have residues, you also need to clean them before using.

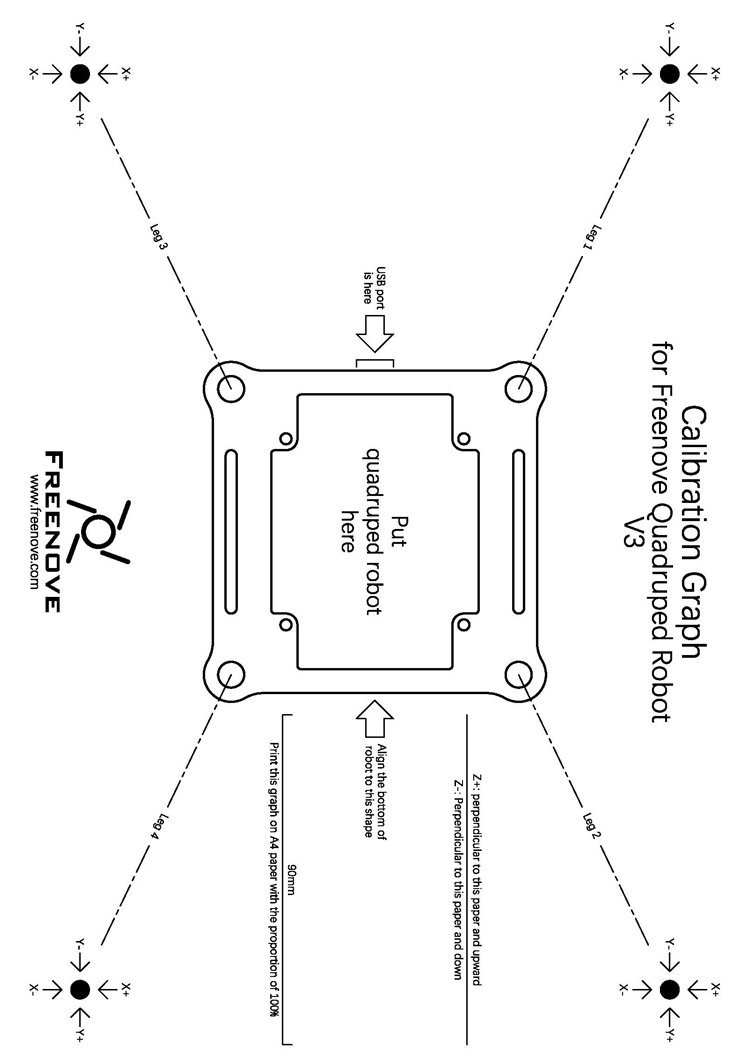

Calibration Graph

../../../_images/List01.png

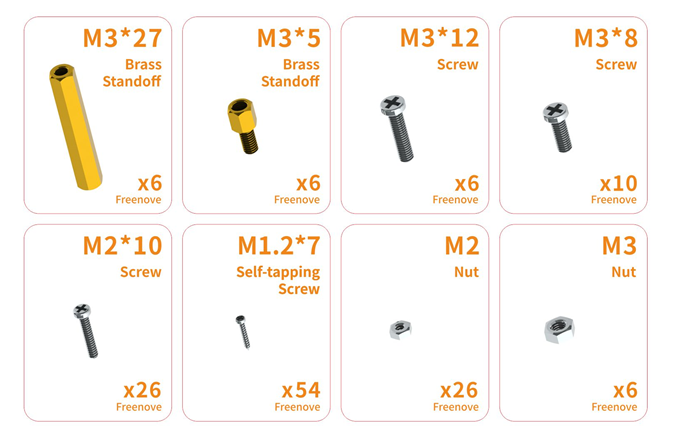

Mechanical Parts

../../../_images/List02.png

Note

If a package of M1.2*7 self-tapping screws cannot be found, it may be packed in the servo package.

Dynamic Parts

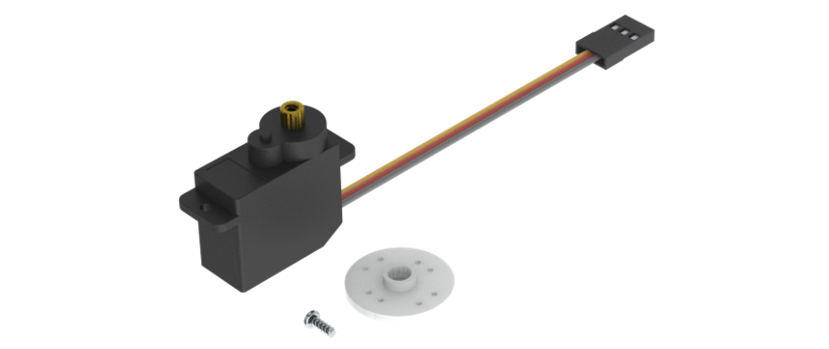

Servo Package x12

../../../_images/List03.png

Electronic Parts

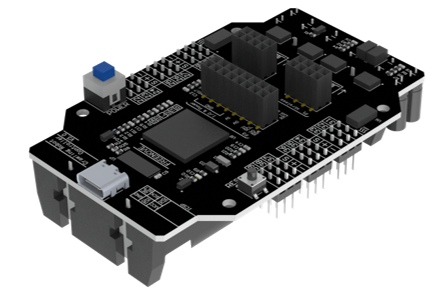

Freenove Crawling Robot Controller x1

List04

WLAN Module x1

List05

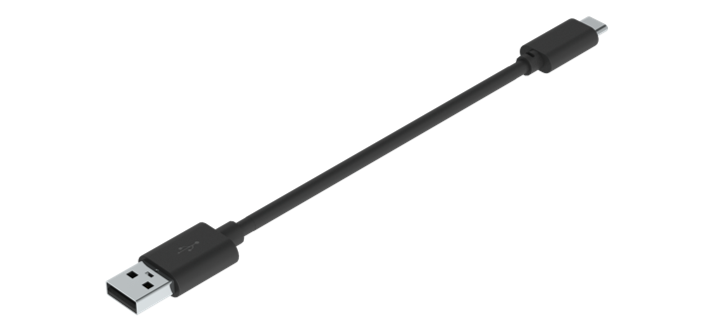

USB Cable x1

List06

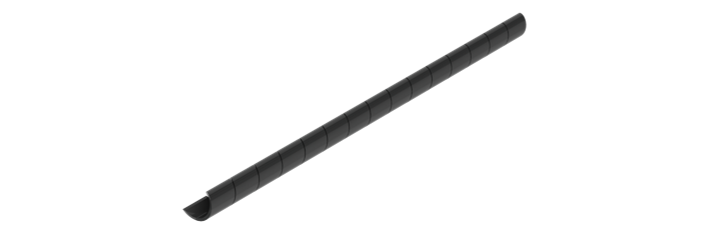

Cable Tidy x50cm

List07

Tools

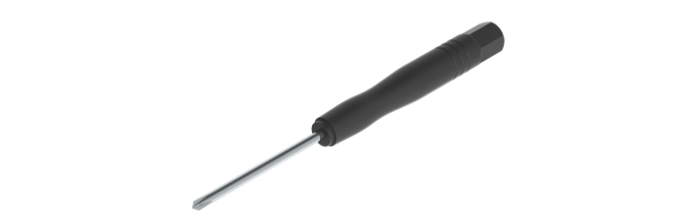

Cross Screwdriver x1

../../../_images/List08.png

Required but NOT Contained Parts

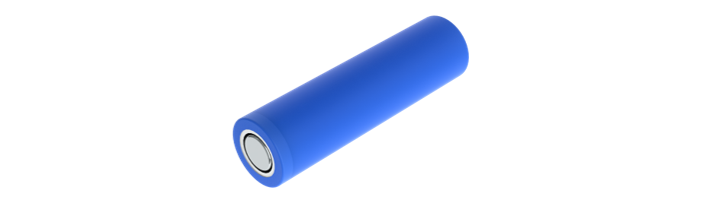

3.7V 18650 rechargeable battery x2

! Please prepare the right batteries and fully charge them before assembling.

(Refer to “AboutBattery_for_V3.pdf” for detailed information about battery.)

! Assembling without right batteries will cause installation errors, which may damage the servos.

List09

Charger for 3.7V 18650 rechargeable battery x1

(Any charger that can charge 3.7V 18650 rechargeable battery.)
