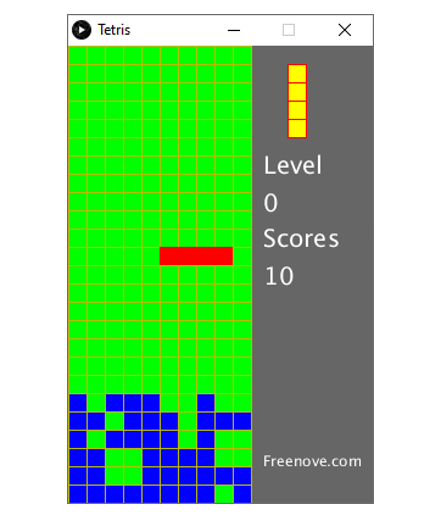

6. Chapter Tetris

In this chapter, we prepare a tetris game for you. You can play the game by pressing the buttons.

6.1. Project Tetris

Now, let’s use Processing and Raspberry Pi Pico to achieve the tetris game.

6.1.1. Component List

Raspberry Pi Pico x1		USB Cable x1
Breadboard x1
Push button x4	Resistor 10kΩ x4	Jumper

6.1.2. Circuit

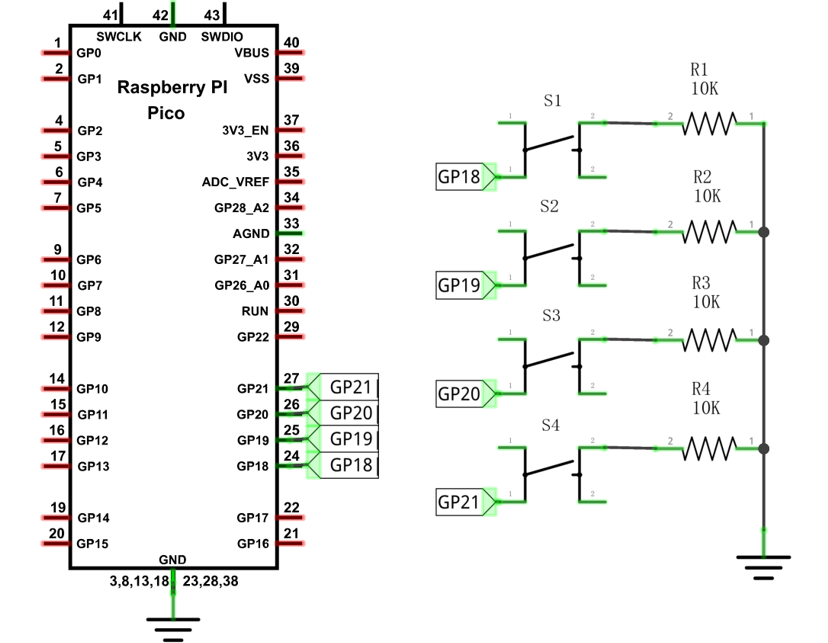

Schematic diagram

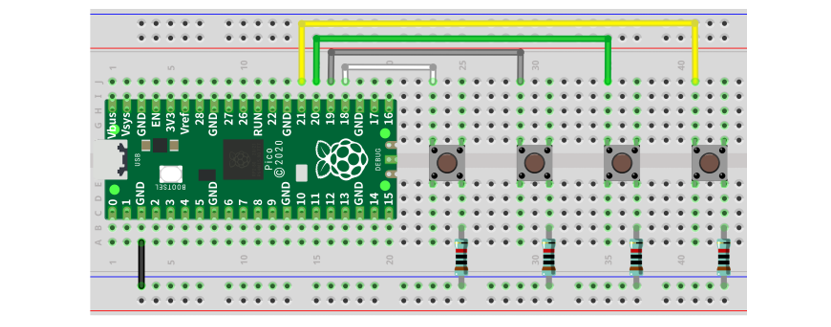

Hardware connection. If you need any support, please contact us via: support@freenove.com

Note

To help users have a better experience when doing the projects, we have made some modifications to Pico’s simulation diagram. Please note that there are certain differences between the simulation diagram and the actual board to avoid misunderstanding.

6.1.3. Sketch

6.1.3.1. Sketch Tetris

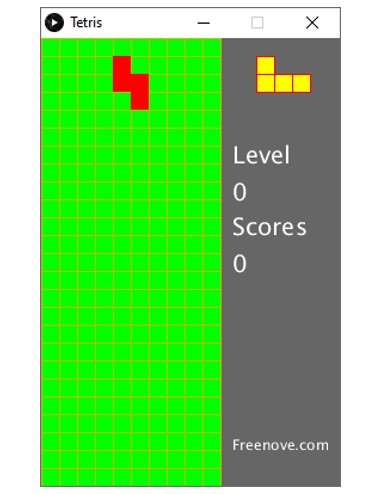

Use Processing to open Tetris.pde and click Run. If the connection succeeds, it will show as follows:

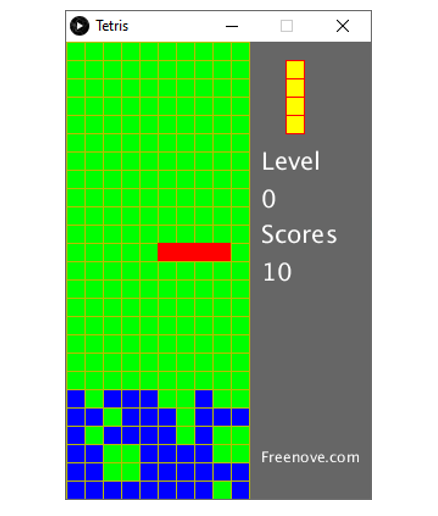

Now you can try using the buttons to control the falling block. Press the space bar to pause the game.

When the game is over, you can press the space bar to restart the game. Press ESC to exit the game.
