6. Chapter Pong Game

We have experienced single-player game snake before. Now, let’s use control board to play classic two-player pong game. You will experience both 2D and 3D version.

6.1. Project 6.1 Pong Game

First, let’s experience the 2D version game.

6.1.1. Component list

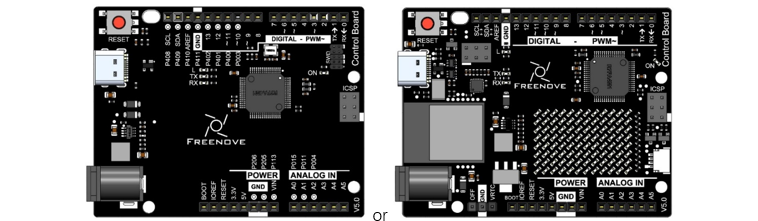

Control board x1

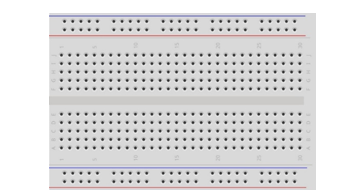

Breadboard x1		GPIO Extension Board x1

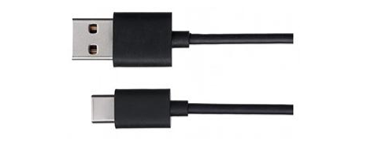

USB cable x1	Jumper M/M x3
Rotary potentiometer x2

6.1.2. Circuit

Use A0, A1 ports on connect board to detect the voltage of rotary potentiometers.

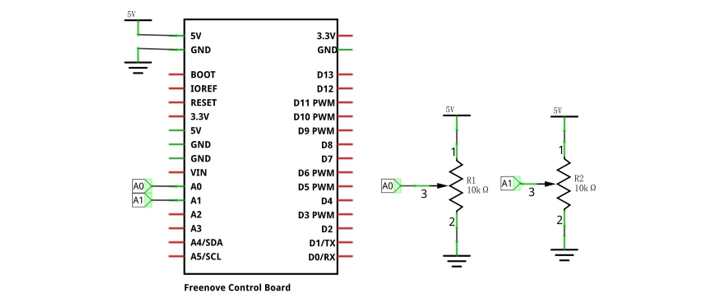

Schematic diagram

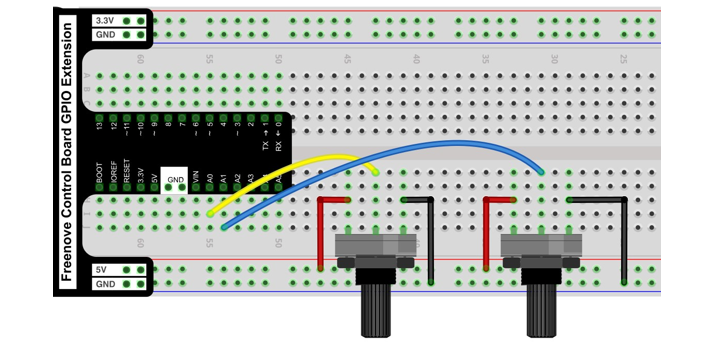

Hardware connection If you need any support, please feel free to contact us via: support@freenove.com

6.1.3. Sketch

6.1.3.1. Sketch Pong_Game

Use Processing to open .\Processing\Processing\Pong_Game\Pong_Game.pde ,and click Run.

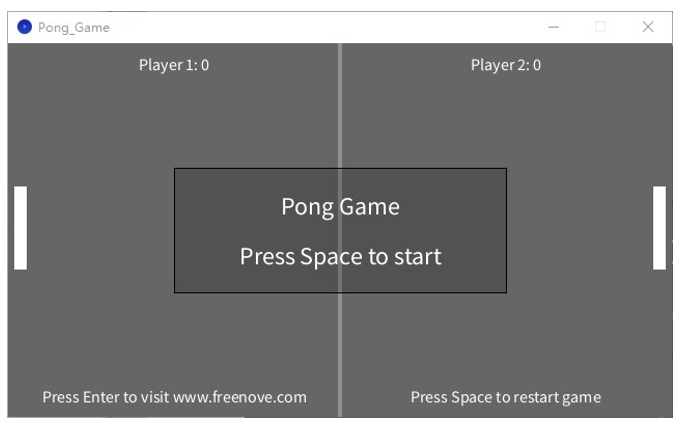

If the connection succeeds, the follow will be shown:

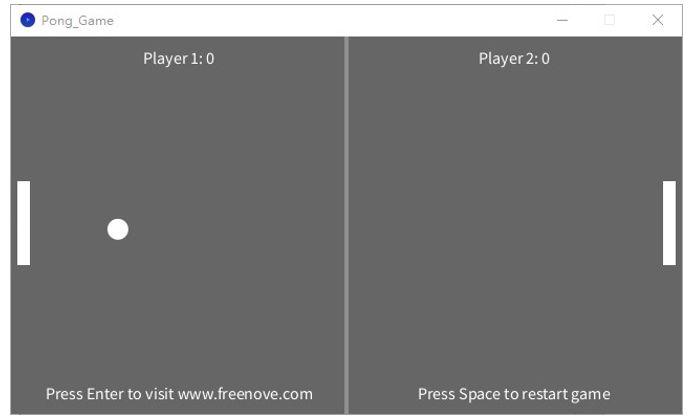

Now you can try to control the racket motion by pressing the corresponding button. Press space bar to start the game:

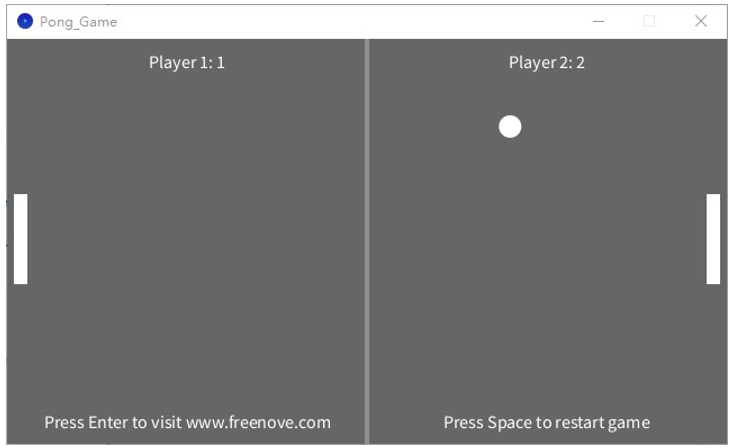

Use button to control the movement of paddle to block the ball back. The game rules are the same as classic pong game:

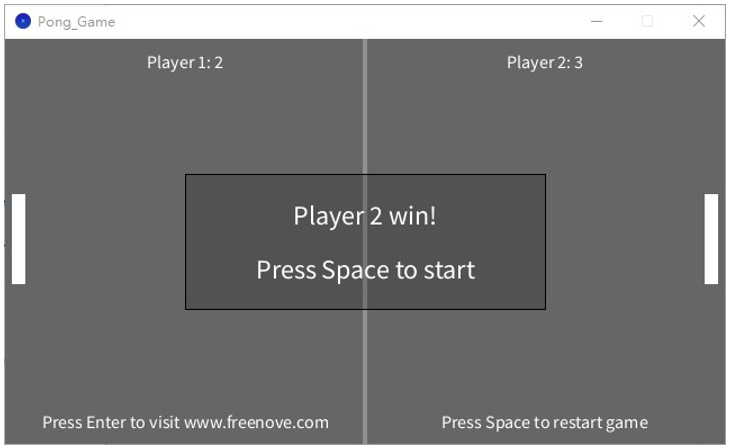

The game will be over when one side reachs three points. Pressing the space bar can restart the game:

Additionally, you can restart the game by pressing the space bar at any time.

6.2. Project 6.2 Pong Game 3D

Now, let’s experience the 3D version game.

6.2.1. Component list

The same as last section.

6.2.2. Circuit

The same as last section.

6.2.3. Sketch

6.2.3.1. Sketch Pong_Game_3D

Use Processing to open .\Processing\Processing\Pong_Game_3D\Pong_Game_3D.pde , and click Run.

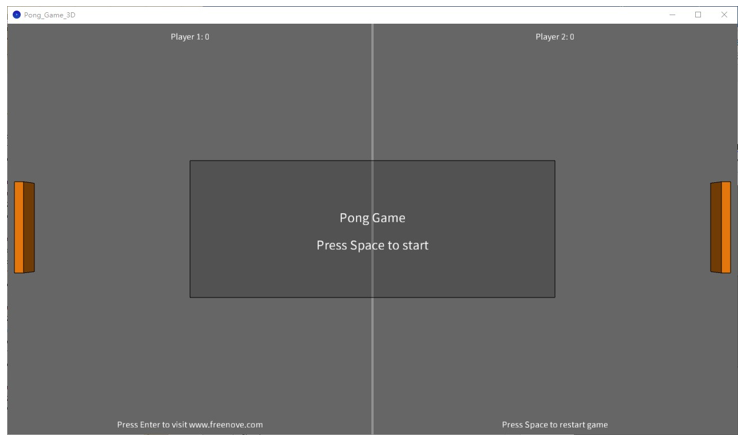

If the connection succeeds, the follow will be shown:

Now you can try to control the racket motion by pressing the corresponding button. Press space bar to start the game:

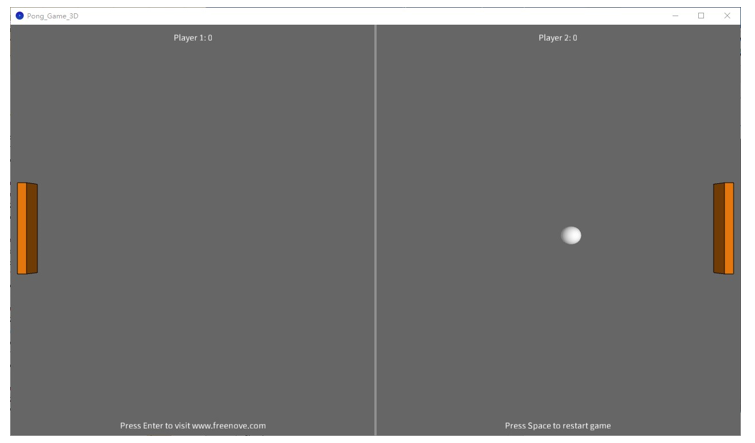

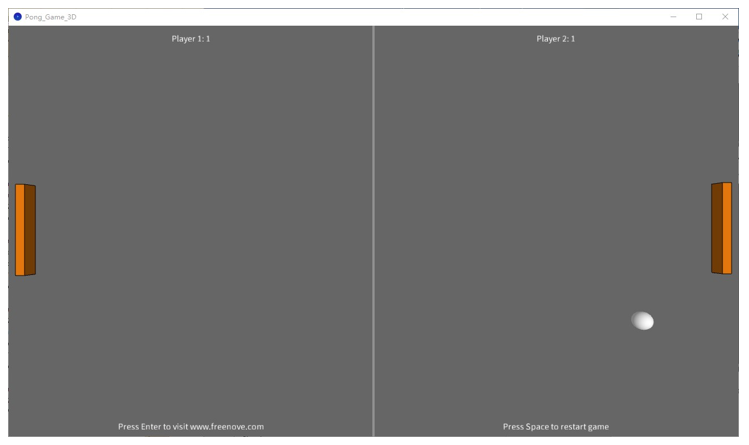

Use button to control the movement of paddle to block the ball back. The game rules are the same as classic pong game:

The rest operation is the same as the 2D version.
