18. Chapter LVGL Heartrate
In this chapter, we will learn how to create a heartrate monitor.
18.1. Project 18.1 LVGL Heartrate
In this project, we will learn how to obtain the raw data and heartrate data of the MAX30102 module and display them on the screen.
18.1.1. Component List
ESP32-S3 WROOM x1
|
USB cable x1
|
SDcard x1
|
|
Card reader x1 (random color) (Not a USB flash drive.)
|
2.8-inch screen
|
||
ESP32-S3 WROOM Shield x1 (Not a USB flash drive.)
|
9V battery x1 (Not included in the kit, prepared by yourself)
|
||
9V battery cable x1
|
|||
18.1.2. Circuit
If you have not yet used the SD card, please refer to Chapter 4. Click here to navigate back to Chapter 4.

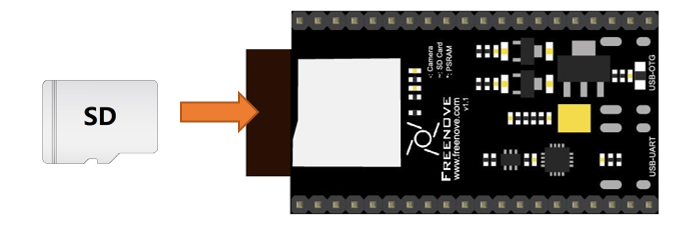

Before connecting the USB cable, insert the SD card into the SD card slot on the back of the ESP32-S3.

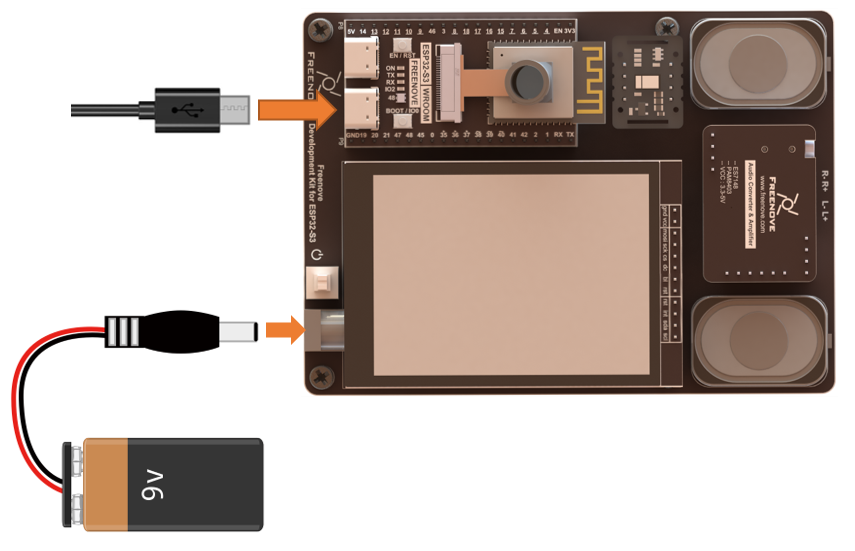

Connect Freenove ESP32-S3 to the computer using the USB cable.
18.1.3. Sketch
18.1.3.1. Sketch_18_LVGL_Heartrate

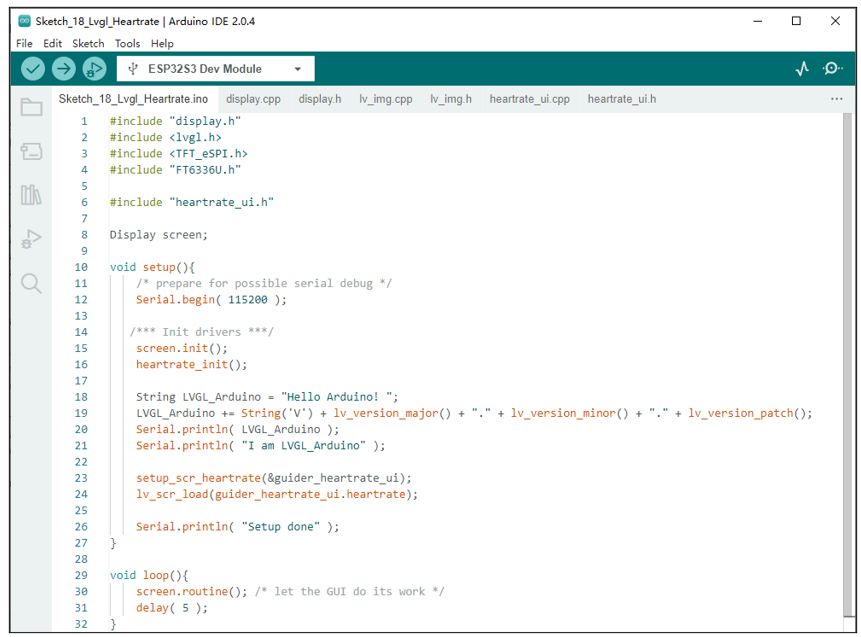

The following is the program code:
1#include "display.h"
2#include <lvgl.h>
3#include <TFT_eSPI.h>
4#include "FT6336U.h"
5
6#include "heartrate_ui.h"
7
8Display screen;
9
10void setup(){
11 /* prepare for possible serial debug */
12 Serial.begin( 115200 );
13
14 /*** Init drivers ***/
15 screen.init();
16 heartrate_init();
17
18 String LVGL_Arduino = "Hello Arduino! ";
19 LVGL_Arduino += String('V') + lv_version_major() + "." + lv_version_minor() + "." + lv_version_patch();
20 Serial.println( LVGL_Arduino );
21 Serial.println( "I am LVGL_Arduino" );
22
23 setup_scr_heartrate(&guider_heartrate_ui);
24 lv_scr_load(guider_heartrate_ui.heartrate);
25
26 Serial.println( "Setup done" );
27}
28
29void loop(){
30 screen.routine(); /* let the GUI do its work */
31 delay( 5 );
32}
Configure the heart rate monitor interface and load this interface.
1setup_scr_heartrate(&guider_heartrate_ui);
2lv_scr_load(guider_heartrate_ui.heartrate);
18.1.3.2. heartrate_ui.h
Declare the functions so that they can be called in the ino file.
1#ifndef __HEARTRATE_UI_H
2#define __HEARTRATE_UI_H
3
4#include "Arduino.h"
5#include "lvgl.h"
6
7#define I2C_SDA 2
8#define I2C_SCL 1
9
10#define HEARTRATE_SERIAL 0 //Serial print the original ir value, average value and dynamic data.
11#define CHART_LOW_LIMIT 0 //Lower limit of Chart
12#define CHART_HIGH_LIMIT 2000 //Upper limit of Chart
13
14typedef struct lvgl_heartrate
15{
16 lv_obj_t *heartrate;
17 lv_obj_t *heartrate_chart;
18 lv_obj_t *heartrate_label;
19 lv_obj_t *heartrate_home;
20}lvgl_heartrate_ui;
21
22extern lvgl_heartrate_ui guider_heartrate_ui; //music ui structure
23
24int heartrate_init(void); //Initialization heartrate module
25void heartrate_shutdown(void); //The heartrate module is enabled to enter low power mode
26void heartrate_wake_up(void); //Wake up the heartrate module
27
28void loopTask_heartrate(void *pvParameters); //heartrate task thread
29void create_heartrate_task(void); //Create heartrate task thread
30void stop_heartrate_task(void); //Close the heartrate thread
31
32void setup_scr_heartrate(lvgl_heartrate_ui *ui); //Parameter configuration function on the heartrate screen
33
34#endif
18.1.3.3. heartrate_ui.cpp
1#include "heartrate_ui.h"
2//#include "main_ui.h"
3#include "lv_img.h"
4#include <Wire.h>
5#include "heartRate.h"
6
7#define I2C_BUFFER_LENGTH 128
8#include "MAX30105.h"
9
10MAX30105 heartrate; //apply a module object
11static lv_chart_series_t *series; //apply an lvgl chart variable
12lvgl_heartrate_ui guider_heartrate_ui;//heartrate ui structure
13int heartrate_task_flag = 0; //heartrate thread running flag
14TaskHandle_t heartrateTaskHandle; //heartrate thread task handle
15
16const byte RATE_SIZE = 4; //Increase this for more averaging. 4 is good.
17byte rates[RATE_SIZE]; //Array of heart rates
18byte rateSpot = 0; //Record the number of bits in the heart rate array
19long lastBeat = 0; //Time at which the last beat occurred
20float beatsPerMinute; //store the heartbeat value per minute
21int beatAvg = 0; //Heart rate average
22int beatAvgLast = 0; //Average heart rate from last time
23byte irvalueSpot = 0; //Record the number of bits in the heartrate irvalue array
24const byte AVERAGE_NUM = 10; //Increase this for more averaging. 10 is good.
25long heartrate_irvalue[AVERAGE_NUM]; //Array of heartrate irvalue
26long show_value = 0; //The data values of the points in the heart rate line plot
27
28//Initialization heartrate module
29int heartrate_init(void) {
30 if (!heartrate.begin(Wire, I2C_SPEED_FAST)) {
31 Serial.println("MAX30105 was not found. Please check wiring/power. ");
32 return -1;
33 }
34 heartrate.setup(); //Configure sensor with these settings
35 heartrate_shutdown();
36 return 0;
37}
38
39//The heartrate module is enabled to enter low power mode
40void heartrate_shutdown(void) {
41 heartrate.shutDown();
42}
43
44//Wake up the heartrate module
45void heartrate_wake_up(void) {
46 heartrate.wakeUp();
47}
48
49//Calculate the average value of the array
50long heartrate_average(long array[], int num) {
51 long average = 0;
52 for (int i = 0; i < num; i++) {
53 average += array[i];
54 }
55 average = average / num;
56 return average;
57}
58
59//heartrate task thread
60void loopTask_heartrate(void *pvParameters) {
61 Serial.println("loopTask_heartrate start...");
62
63 while (heartrate_task_flag) {
64 long irValue = heartrate.getIR(); //Get the raw data
65 if (irValue < 50000) {
66 delay(100);
67 }
68 else{
69 if (checkForBeat(irValue) == true) {
70 //We sensed a beat!
71 long delta = millis() - lastBeat;
72 lastBeat = millis();
73 beatsPerMinute = 60.0 / (delta / 1000.0);
74
75 if (beatsPerMinute < 255 && beatsPerMinute > 50) {
76 rates[rateSpot++] = (byte)beatsPerMinute; //Store this reading in the array
77 rateSpot %= RATE_SIZE; //Wrap variable
78 //Take average of readings
79 beatAvg = 0;
80 for (byte x = 0; x < RATE_SIZE; x++)
81 beatAvg += rates[x];
82 beatAvg /= RATE_SIZE;
83 }
84 }
85 heartrate_irvalue[irvalueSpot++] = irValue; //Put the raw data into an array
86 irvalueSpot %= AVERAGE_NUM;
87 long average = heartrate_average(heartrate_irvalue, AVERAGE_NUM);
88 show_value = irValue - average + (CHART_HIGH_LIMIT / 2);
89
90 #if HEARTRATE_SERIAL
91 Serial.printf("%ld %ld %ld\r\n", irValue, average, show_value);
92 #endif
93
94 if (irValue > 50000 && show_value > CHART_LOW_LIMIT && show_value < CHART_HIGH_LIMIT)
95 lv_chart_set_next_value(guider_heartrate_ui.heartrate_chart, series, show_value);
96 if (beatAvg != beatAvgLast) {
97 beatAvgLast = beatAvg;
98 lv_label_set_text_fmt(guider_heartrate_ui.heartrate_label, "HeartRate: %d", beatAvg);
99 }
100 }
101 }
102 heartrate_shutdown();
103 vTaskDelete(heartrateTaskHandle);
104}
105
106//Create heartrate task thread
107void create_heartrate_task(void) {
108 if (heartrate_task_flag == 0) {
109 heartrate_task_flag = 1;
110 xTaskCreate(loopTask_heartrate, "loopTask_heartrate", 8192, NULL, 1, &heartrateTaskHandle);
111 } else {
112 Serial.println("loopTask_heartrate is running...");
113 }
114}
115
116//Close the heartrate thread
117void stop_heartrate_task(void) {
118 if (heartrate_task_flag == 1) {
119 heartrate_task_flag = 0;
120 while (1) {
121 if (eTaskGetState(heartrateTaskHandle) == eDeleted) {
122 break;
123 }
124 vTaskDelay(10);
125 }
126 Serial.println("loopTask_heartrate deleted!");
127 }
128}
129
130//Click the logo icon, callback function: goes to the main ui interface
131static void heartrate_home_event_handler(lv_event_t *e) {
132 lv_event_code_t code = lv_event_get_code(e);
133 switch (code) {
134 case LV_EVENT_CLICKED:
135 {
136 Serial.println("Clicked the logo button.");
137 }
138 break;
139 case LV_EVENT_RELEASED:
140 {
141 /*
142 stop_heartrate_task();
143 delay(100);
144 if (!lv_obj_is_valid(guider_main_ui.main))
145 setup_scr_main(&guider_main_ui);
146 lv_disp_t *d = lv_obj_get_disp(lv_scr_act());
147 if (d->prev_scr == NULL && d->scr_to_load == NULL)
148 lv_scr_load(guider_main_ui.main);
149 lv_obj_del(guider_heartrate_ui.heartrate);
150 */
151 }
152 break;
153 default:
154 break;
155 }
156}
157
158//Parameter configuration function on the heartrate screen
159void setup_scr_heartrate(lvgl_heartrate_ui *ui) {
160 ui->heartrate = lv_obj_create(NULL);
161
162 static lv_style_t bg_style;
163 lv_style_init(&bg_style);
164 lv_style_set_bg_color(&bg_style, lv_color_hex(0xffffff));
165 lv_obj_add_style(ui->heartrate, &bg_style, LV_PART_MAIN);
166
167 lv_img_home_init();
168
169 /*Init the pressed style*/
170 static lv_style_t style_pr;//Apply for a style
171 lv_style_init(&style_pr); //Initialize it
172 lv_style_set_translate_y(&style_pr, 5);//Style: Every time you trigger, move down 5 pixels
173
174 /*Create a chart1*/
175 ui->heartrate_chart = lv_chart_create(ui->heartrate);
176
177 lv_obj_set_size(ui->heartrate_chart, 180, 200);
178 lv_obj_set_pos(ui->heartrate_chart, 60, 120);
179 lv_chart_set_type(ui->heartrate_chart, LV_CHART_TYPE_LINE); /*Show lines and points too*/
180 lv_chart_set_div_line_count(ui->heartrate_chart, 5, 10); //Set chart to 5 rows and 10 columns
181 lv_chart_set_point_count(ui->heartrate_chart, 100); //chart shows the data for 100 points
182 lv_obj_set_style_size(ui->heartrate_chart, 0, LV_PART_INDICATOR); //Make each data point unsalient
183
184 lv_chart_set_update_mode(ui->heartrate_chart, LV_CHART_UPDATE_MODE_SHIFT);//Move chart to update data
185 /*Add two data series*/
186 series = lv_chart_add_series(ui->heartrate_chart, lv_palette_main(LV_PALETTE_BLUE), LV_CHART_AXIS_SECONDARY_Y);//Let the data be on the right y axis
187 lv_chart_set_range(ui->heartrate_chart, LV_CHART_AXIS_SECONDARY_Y, CHART_LOW_LIMIT, CHART_HIGH_LIMIT); //Set the value range of right y axis
188
189 lv_chart_set_axis_tick(ui->heartrate_chart, LV_CHART_AXIS_PRIMARY_Y, 3, 1, 11, 2, true, 60); //Let the axis be on the left y axis
190 lv_chart_set_range(ui->heartrate_chart, LV_CHART_AXIS_PRIMARY_Y, CHART_LOW_LIMIT, CHART_HIGH_LIMIT); //Set the value range of left y axis
191
192 ui->heartrate_label = lv_label_create(ui->heartrate);
193 lv_obj_set_pos(ui->heartrate_label, 0, 50);
194 lv_obj_set_size(ui->heartrate_label, 140, 40);
195 lv_label_set_text(ui->heartrate_label, "HeartRate:0");
196 lv_label_set_long_mode(ui->heartrate_label, LV_LABEL_LONG_WRAP);
197 lv_obj_set_style_text_align(ui->heartrate_label, LV_TEXT_ALIGN_CENTER, 0);
198
199 ui->heartrate_home = lv_imgbtn_create(ui->heartrate);
200 lv_obj_set_pos(ui->heartrate_home, 150, 20);
201 lv_obj_set_size(ui->heartrate_home, 80, 80);
202 lv_img_set_src(ui->heartrate_home, &img_home);
203 lv_obj_add_style(ui->heartrate_home, &style_pr, LV_STATE_PRESSED);//Triggered when the button is pressed
204
205 lv_obj_add_event_cb(ui->heartrate_home, heartrate_home_event_handler, LV_EVENT_ALL, NULL);
Initialize the heart rate module and configure it to sleep mode.
1long show_value = 0; //The data values of the points in the heart rate line plot
2
3//Initialization heartrate module
4int heartrate_init(void) {
5 if (!heartrate.begin(Wire, I2C_SPEED_FAST)) {
6 Serial.println("MAX30105 was not found. Please check wiring/power. ");
7 return -1;
8 }
9 heartrate.setup(); //Configure sensor with these settings
Heartrate module sleep function and module wake-up function.
1 return 0;
2}
3
4//The heartrate module is enabled to enter low power mode
5void heartrate_shutdown(void) {
6 heartrate.shutDown();
7}
8
9//Wake up the heartrate module
Average the heartrate values obtained multiple times.
1 return 0;
2}
3
4//The heartrate module is enabled to enter low power mode
5void heartrate_shutdown(void) {
6 heartrate.shutDown();
7}
8
9//Wake up the heartrate module
Acquire raw infrared data.
1Serial.println("loopTask_heartrate start...");
Heartrate checking function. Returns true if a mentality spike is detected, otherwise returns false.
checkForBeat(irValue)
If the HEARTRATE_SERIAL macro definition is set to 1, the original data will be printed to the serial port, allowing you to view the heart rate waveform using a serial port drawing function. By default, serial port data is not printed.
1long average = heartrate_average(heartrate_irvalue, AVERAGE_NUM);
2show_value = irValue - average + (CHART_HIGH_LIMIT / 2);
3
Label component setup function, which can be used similarly like printf().
1lv_chart_set_next_value(guider_heartrate_ui.heartrate_chart, series, show_value);
Create a line chart with 100 data points to make the waveform more closely resemble real data. Set the chart to scroll continuously for optimal viewing.
1lv_style_init(&style_pr); //Initialize it
2lv_style_set_translate_y(&style_pr, 5);//Style: Every time you trigger, move down 5 pixels
3
4/*Create a chart1*/
5ui->heartrate_chart = lv_chart_create(ui->heartrate);
6
7lv_obj_set_size(ui->heartrate_chart, 180, 200);
8lv_obj_set_pos(ui->heartrate_chart, 60, 120);
9lv_chart_set_type(ui->heartrate_chart, LV_CHART_TYPE_LINE); /*Show lines and points too*/
10lv_chart_set_div_line_count(ui->heartrate_chart, 5, 10); //Set chart to 5 rows and 10 columns
11lv_chart_set_point_count(ui->heartrate_chart, 100); //chart shows the data for 100 points
12lv_obj_set_style_size(ui->heartrate_chart, 0, LV_PART_INDICATOR); //Make each data point unsalient
13
14lv_chart_set_update_mode(ui->heartrate_chart, LV_CHART_UPDATE_MODE_SHIFT);//Move chart to update data
15/*Add two data series*/
16series = lv_chart_add_series(ui->heartrate_chart, lv_palette_main(LV_PALETTE_BLUE), LV_CHART_AXIS_SECONDARY_Y);//Let the data be on the right y axis
17lv_chart_set_range(ui->heartrate_chart, LV_CHART_AXIS_SECONDARY_Y, CHART_LOW_LIMIT, CHART_HIGH_LIMIT); //Set the value range of right y axis
Display heart rate data on a line chart.
1#endif
