38. Chapter WiFi Working Modes (WiFi Board)

In this chapter, we’ll focus on the WiFi infrastructure for control board.

Control board has 3 different WiFi operating modes: station mode, AP mode and AP+station mode. All WiFi programming projects must be configured with WiFi operating mode before using WiFi, otherwise WiFi cannot be used.

38.1. Project Station mode

38.1.1. Component List

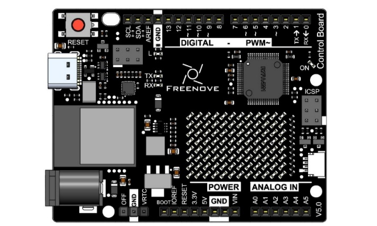

Control board x1

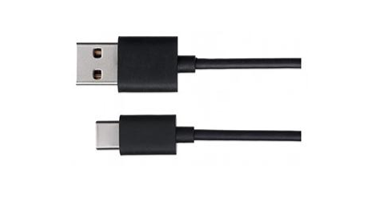

USB cable x1

38.1.2. Component knowledge

38.1.2.1. Station mode

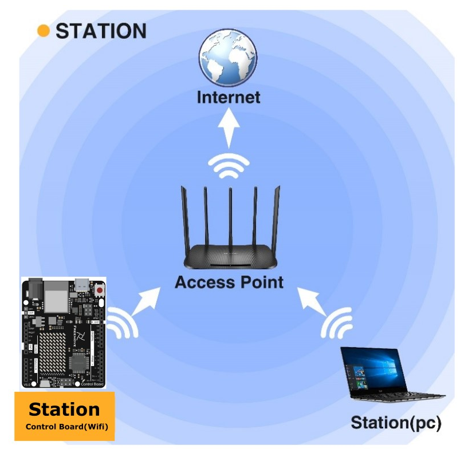

When control board(wifi) selects Station mode, it acts as a WiFi client. It can connect to the router network and communicate with other devices on the router via WiFi connection. As shown below, the PC is connected to the router, and if control board(wifi) wants to communicate with the PC, it needs to be connected to the router.

38.1.3. Circuit

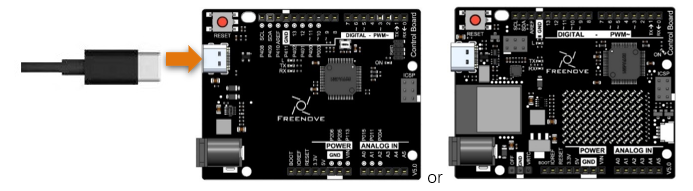

Connect the board to the computer using the USB cable.

38.1.4. Sketch

38.1.4.1. Sketch_38.1.1

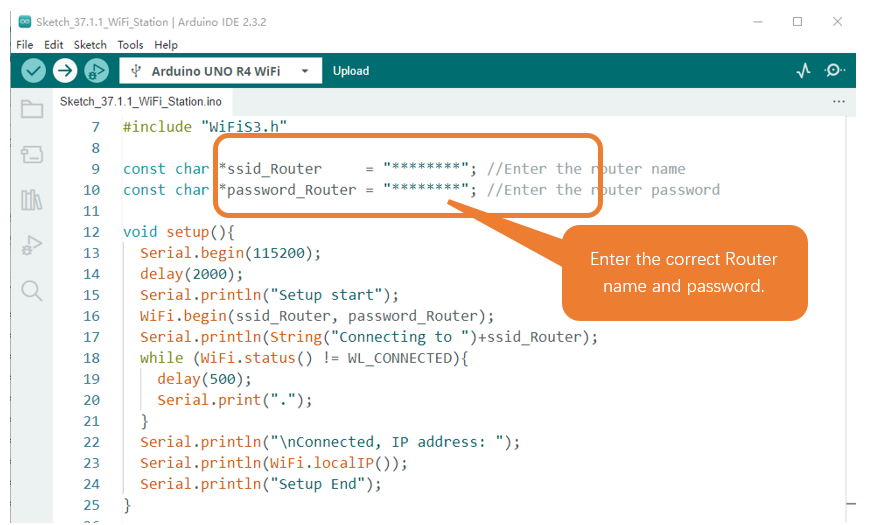

Because the names and passwords of routers in various places are different, before the Sketch runs, users need to enter the correct router’s name and password in the box as shown in the illustration above.

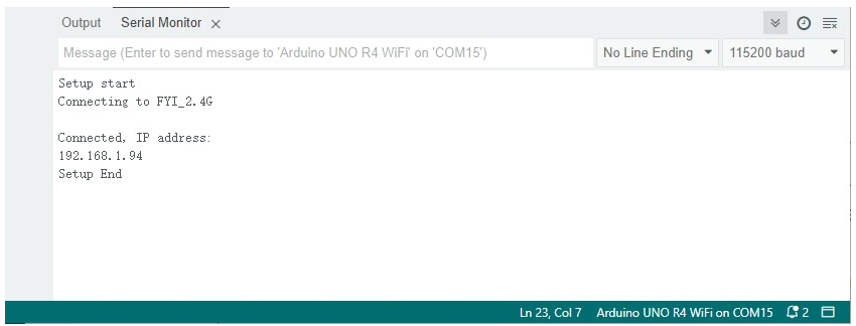

After making sure the router name and password are entered correctly, compile and upload codes to control board, open serial monitor and set baud rate to 115200. And then it will display as follows:

When control board successfully connects to “ssid_Router”, serial monitor will print out the IP address assigned to control board by the router.

The following is the program code:

/**********************************************************************
  Filename    : Sketch_38.1.1_WiFi_Station
  Description : Connect to your router using control board
  Auther      : www.freenove.com
  Modification: 2024/08/05
**********************************************************************/

#include "WiFiS3.h"

const char *ssid_Router     = "********"; //Enter the router name
const char *password_Router = "********"; //Enter the router password

void setup(){
  Serial.begin(115200);
  delay(2000);
  Serial.println("Setup start");
  WiFi.begin(ssid_Router, password_Router);
  Serial.println(String("Connecting to ")+ssid_Router);
  while (WiFi.status() != WL_CONNECTED){
    delay(500);
    Serial.print(".");
  }
  Serial.println("\nConnected, IP address: ");
  Serial.println(WiFi.localIP());
  Serial.println("Setup End");
}

void loop() {
}

Include the WiFi Library header file of control board.

#include "WiFiS3.h"

Enter correct router name and password.

const char *ssid_Router     = "********"; //Enter the router name
const char *password_Router = "********"; //Enter the router password

Set control board in Station mode and connect it to your router.

WiFi.begin(ssid_Router, password_Router);

Check whether control board has connected to router successfully every 0.5s.

while (WiFi.status() != WL_CONNECTED){
  delay(500);
  Serial.print(".");
}

Serial monitor prints out the IP address assigned to control board.

Serial.println(WiFi.localIP());

38.1.4.2. Reference

Class Station

Every time when using WiFi, you need to include header file “WiFiS3.h.”.

begin(ssid, password,channel, bssid, connect): control board is used as Station to connect hotspot.

ssid: WiFi hotspot name

password: WiFi hotspot password

channel: WiFi hotspot channel number; communicating through specified channel; optional parameter

bssid: mac address of WiFi hotspot, optional parameter

connect: blloean optional parameter, defaulting to true. If set as false, then control board won’t connect WiFi.

config(local_ip, gateway, subnet, dns1, dns2): set static local IP address.

local_ip: station fixed IP address.

subnet: subnet mask

dns1,dns2: optional parameter. define IP address of domain name server

status: obtain the connection status of WiFI

local IP(): obtian IP address in Station mode

disconnect(): disconnect wifi

setAutoConnect(boolen): set automatic connection Every time control board is power on, it will connect WiFi aitomatically.

setAutoReconnect(boolen): set automatic reconnection Every time control board disconnects WiFi, it will reconnect to WiFi automatically.

38.2. Project AP mode

38.2.1. Component List & Circuit

Component List & Circuit are the same as in Section 30.1.

38.2.2. Component knowledge

38.2.2.1. AP mode

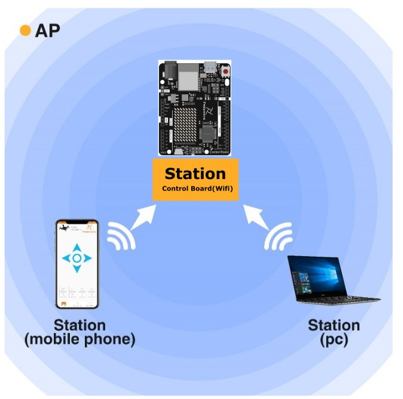

When control board selects AP mode, it creates a hotspot network that is separate from the Internet and waits for other WiFi devices to connect. As shown in the figure below, Control board is used as a hotspot. If a mobile phone or PC wants to communicate with control board, it must be connected to the hotspot of control board. Only after a connection is established with control board can they communicate.

38.2.3. Circuit

Connect the board to the computer using the USB cable.

38.2.4. Sketch

38.2.4.1. Sketch_38.2.1

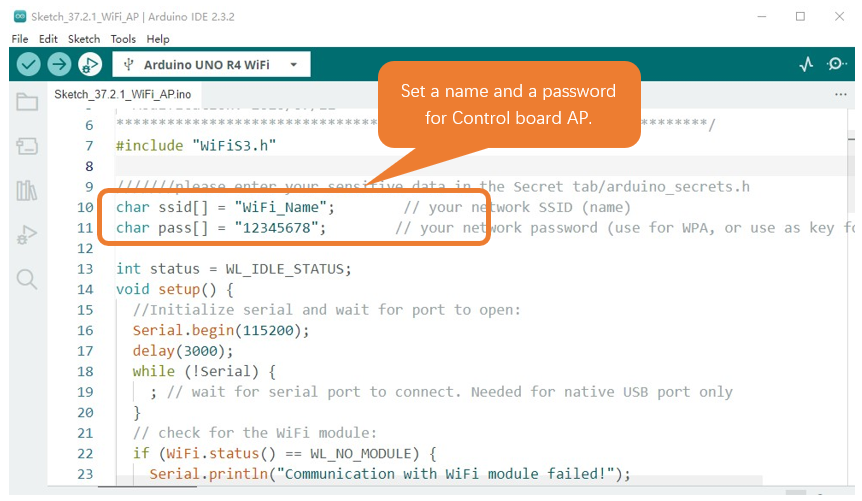

Before the Sketch runs, you can make any changes to the AP name and password for control board in the box as shown in the illustration above. Of course, you can leave it alone by default.

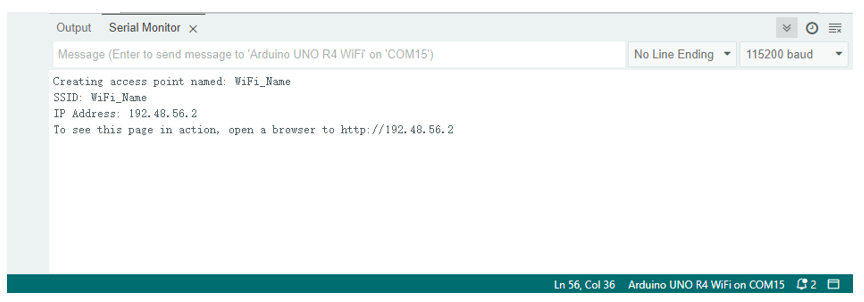

Compile and upload codes to control board, open the serial monitor and set the baud rate to 115200. And then it will display as follows.

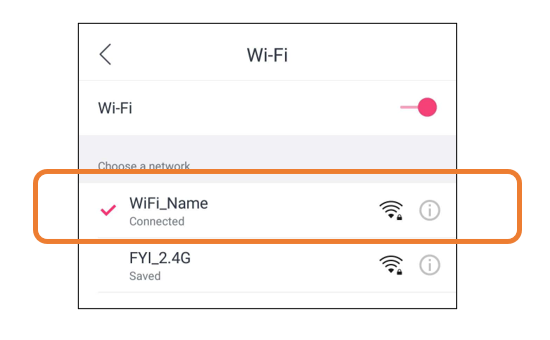

When observing the print information of the serial monitor, turn on the WiFi scanning function of your phone, and you can see the ssid_AP on control board, which is called “WiFi_Name” in this Sketch. You can enter the password “12345678” to connect it or change its AP name and password by modifying Sketch.

38.2.4.2. Sketch_37.2_AP_mode

The following is the program code:

/**********************************************************************
  Filename    : Sketch 38.2.1_WiFi_AP
  Description : Set control board to open an access point
  Auther      : www.freenove.com
  Modification: 2024/08/05
**********************************************************************/

#include "WiFiS3.h"

///////please enter your sensitive data in the Secret tab/arduino_secrets.h
char ssid[] = "WiFi_Name";        // your network SSID (name)
char pass[] = "12345678";        // your network password (use for WPA, or use as key for WEP)

int status = WL_IDLE_STATUS;
void setup() {
  //Initialize serial and wait for port to open:
  Serial.begin(115200);
  delay(3000);
  while (!Serial) {
    ; // wait for serial port to connect. Needed for native USB port only
  }
  // check for the WiFi module:
  if (WiFi.status() == WL_NO_MODULE) {
    Serial.println("Communication with WiFi module failed!");
    // don't continue
    while (true);
  }

  String fv = WiFi.firmwareVersion();
  if (fv < WIFI_FIRMWARE_LATEST_VERSION) {
    Serial.println("Please upgrade the firmware");
  }
  // by default the local IP address will be 192.168.4.1
  // you can override it with the following:
  WiFi.config(IPAddress(192,48,56,2));
  // print the network name (SSID);
  Serial.print("Creating access point named: ");
  Serial.println(ssid);

  // Create open network. Change this line if you want to create an WEP network:
  status = WiFi.beginAP(ssid, pass);
  if (status != WL_AP_LISTENING) {
    Serial.println("Creating access point failed");
    // don't continue
    while (true);
  }

  // wait 5 seconds for connection:
  delay(5000);
  // you're connected now, so print out the status
  printWiFiStatus();
}

void loop() {
}

void printWiFiStatus() {
  // print the SSID of the network you're attached to:
  Serial.print("SSID: ");
  Serial.println(WiFi.SSID());

  // print your WiFi shield's IP address:
  IPAddress ip = WiFi.localIP();
  Serial.print("IP Address: ");
  Serial.println(ip);

  // print where to go in a browser:
  Serial.print("To see this page in action, open a browser to http://");
  Serial.println(ip);

}

Include WiFi Library header file of control board.

#include "WiFiS3.h"

Enter correct AP name and password.

char ssid[] = "WiFi_Name";        // your network SSID (name)
char pass[] = "12345678";        // your network password (use for WPA, or use as key for WEP)

Check whether the AP is turned on successfully. If yes, print out IP and MAC address of AP established by control board. If no, print out the failure prompt.

status = WiFi.beginAP(ssid, pass);
if (status != WL_AP_LISTENING) {
    Serial.println("Creating access point failed");
    // don't continue
    while (true);
}
...
// wait 5 seconds for connection:
delay(5000);
// you're connected now, so print out the status
printWiFiStatus();
...
void printWiFiStatus() {
    // print the SSID of the network you're attached to:
    Serial.print("SSID: ");
    Serial.println(WiFi.SSID());

    // print your WiFi shield's IP address:
    IPAddress ip = WiFi.localIP();
    Serial.print("IP Address: ");
    Serial.println(ip);

    // print where to go in a browser:
    Serial.print("To see this page in action, open a browser to http://");
    Serial.println(ip);
}
