13. Chapter LCD1602

13.1. Component List

Raspberry Pi (with 40 GPIO) x1 GPIO Extension Board & Ribbon Cable x1 Breadboard x1	Jumper Wires x4
I2C LCD1602 Module x1

13.2. Circuit

Note that the power supply for I2C LCD1602 in this circuit is 5V.

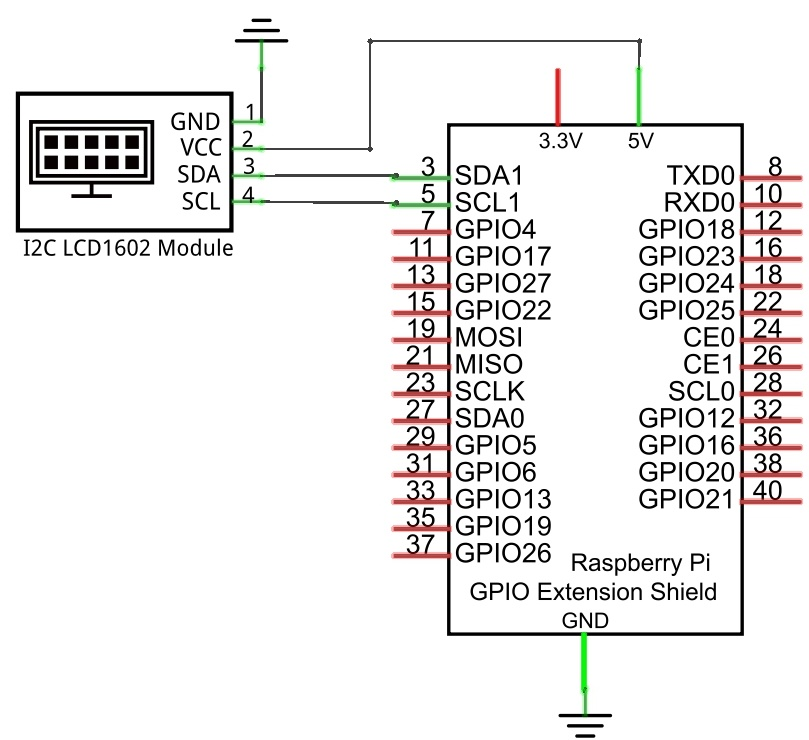

Schematic diagram

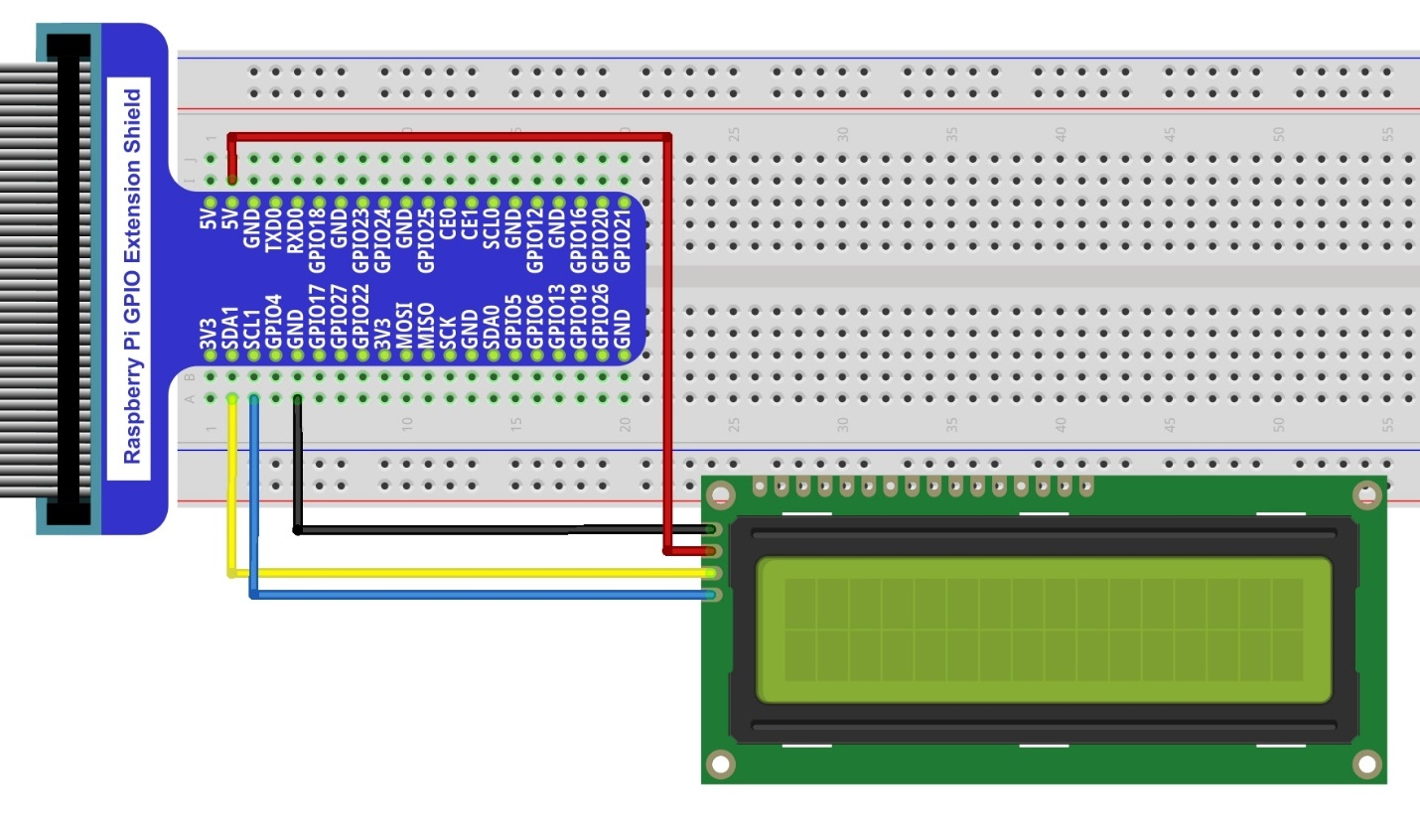

Hardware connection. If you need any support,please feel free to contact us via: support@freenove.com

Note

It is necessary to configure 12C and install Smbus first (see Chapter 7 ADC for details)

13.3. Sketch

In this project, we will drive the LCD1602 display with I2C.

13.3.1. Sketch_I2CLCD1602

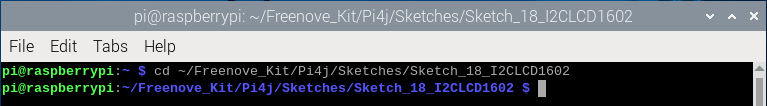

First, enter where the project is located:

$ cd ~/Freenove_Kit/Pi4j/Sketches/Sketch_13_I2CLCD1602

Enter the command to run the code.

$ jbang I2CLCD1602.java

When the code is running, you can see the first line of the display shows “Hello World”, and the second line displays the running time in second.

Press Ctrl+C to exit the program.

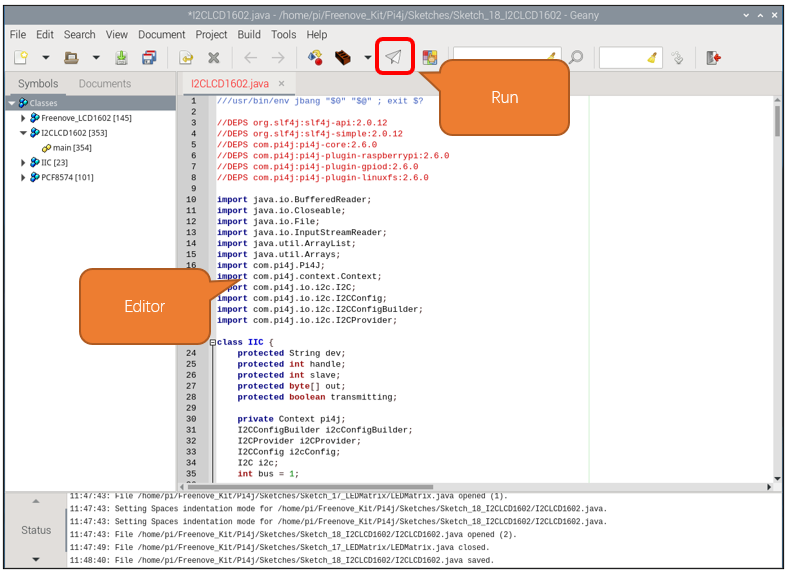

You can run the following command to open the code with Geany to view and edit it.

$ geany I2CLCD1602.java

Click the icon to run the code.

If the code fails to run, please check Geany Configuration.

The following is program code:

// Shebang line for JBang to execute this script directly
///usr/bin/env jbang "$0" "$@" ; exit $?

// Dependencies for this script
//DEPS org.slf4j:slf4j-api:2.0.12
//DEPS org.slf4j:slf4j-simple:2.0.12
//DEPS com.pi4j:pi4j-core:2.6.0
//DEPS com.pi4j:pi4j-plugin-raspberrypi:2.6.0
//DEPS com.pi4j:pi4j-plugin-gpiod:2.6.0
//DEPS com.pi4j:pi4j-plugin-linuxfs:2.6.0

import java.io.BufferedReader;
import java.io.Closeable;
import java.io.File;
import java.io.InputStreamReader;
import java.util.ArrayList;
import java.util.Arrays;

import com.pi4j.Pi4J;
import com.pi4j.context.Context;
import com.pi4j.io.i2c.I2C;
import com.pi4j.io.i2c.I2CConfig;
import com.pi4j.io.i2c.I2CConfigBuilder;
import com.pi4j.io.i2c.I2CProvider;

class IIC {
  protected String dev;
  protected int handle;
  protected int slave;
  protected byte[] out;
  protected boolean transmitting;

  private Context pi4j;
  I2CConfigBuilder i2cConfigBuilder;
  I2CProvider i2CProvider;
  I2CConfig i2cConfig;
  I2C i2c;
  int bus = 1;

  public IIC(int bus) {
    this.bus = bus;
    constructor();
  }

  public IIC(String s) {
    String b = s.split("i2c-")[1];
    try {
      this.bus = Integer.parseInt(b);
    } catch (Exception e) {
      this.bus = 1;
    }
    constructor();
  }

  private void constructor() {
    pi4j = Pi4J.newAutoContext();
    i2CProvider = pi4j.provider("linuxfs-i2c");
    i2cConfigBuilder = I2C.newConfigBuilder(pi4j).bus(bus);
  }

  public void beginTransmission(int address) {
    if (i2cConfig == null) {
      i2cConfig = i2cConfigBuilder.device(address).build();
    }

    if (i2c == null) {
      i2c = i2CProvider.create(i2cConfig);
    }
  }

  public void write(int b) {
    i2c.write(b);
  }

  public byte read() {
    return i2c.readByte();
  }

  public byte[] read(int size) {
    return i2c.readByteBuffer(size).array();
  }

  public void endTransmission() {
    i2c.close();
  }

  public static String[] list() {
    ArrayList<String> devs = new ArrayList<String>();
    File dir = new File("/dev");
    File[] files = dir.listFiles();
    if (files != null) {
      for (File file : files) {
        if (file.getName().startsWith("i2c-")) {
          devs.add(file.getName());
        }
      }
    }
    String[] tmp = devs.toArray(new String[devs.size()]);
    Arrays.sort(tmp);
    return tmp;
  }
}

class PCF8574 {
  private int address;
  private IIC i2c;
  private int currValue;

  public PCF8574(int addr) {
    address = addr;
    i2c = new IIC(IIC.list()[0]);
    currValue = 0;
  }

  public int digitalRead(int pin) {
    int val = readByte();
    return ((val & (1 << pin)) == (1 << pin)) ? 1 : 0;
  }

  public int readByte() {
    return currValue;
  }

  public void digitalWrite(int pin, int val) {
    int value = currValue;
    if (val == 1) {
      value |= (1 << pin);
    } else if (val == 0) {
      value &= ~(1 << pin);
    } else {
      return;
    }
    writeByte(value);
  }

  public void writeByte(int data) {
    currValue = data;
    i2c.beginTransmission(address);
    i2c.write(data);
    i2c.endTransmission();
  }

  public int getCurrentValue() {
    return currValue;
  }
}

class Freenove_LCD1602 {
  final public int // HD44780U commands
  CLEAR = 0x01,
      HOME = 0x02,
      ENTRY = 0x04,
      CTRL = 0x08,
      CDSHIFT = 0x10,
      FUNC = 0x20,
      CGRAM = 0x40,
      DDRAM = 0x80;

  final public int // flags for display entry mode
  ENTRY_SH = 0x01,
      ENTRY_ID = 0x02;

  final public int // flags for display/cursor on/off control
  BLINK_CTRL = 0x01,
      CURSOR_CTRL = 0x02,
      DISPLAY_CTRL = 0x04;

  final public int // flags function set
  FUNC_F = 0x04,
      FUNC_N = 0x08,
      FUNC_DL = 0x10,
      MOVERIGHT = 0x04, // flags for display/cursor shift
      MOVELEFT = 0x00,
      DISPLAYMOVE = 0x08,
      CURSORMOVE = 0x00;

  final public int[] rowOff = { 0x00, 0x40, 0x14, 0x54 };
  private int func = 0, control = 0;
  PCF8574 pcf;
  private int rows, cols, rsPin, enPin, rwPin;
  int displayMode = 0;

  private void delay(long ms) {
    long startTime = System.nanoTime();
    long endTime = startTime + (ms * 1000 * 1000);
    while (System.nanoTime() < endTime) {
    }
  }

  private int constrain(int value, int min, int max) {
    if (value < min) {
      return min;
    } else if (value > max) {
      return max;
    } else {
      return value;
    }
  }

  public Freenove_LCD1602(PCF8574 ipcf) {
    pcf = ipcf;
    rows = 2;
    cols = 16;
    rsPin = 0; // connect to PCF8574 module
    enPin = 2;
    rwPin = 1;

    pcf.digitalWrite(rsPin, 0);
    pcf.digitalWrite(enPin, 0);
    pcf.digitalWrite(rwPin, 0);
    delay(35);
    func = FUNC | FUNC_DL; // set 8-bit mode 3 times
    put4Command(func >> 4);
    delay(35);
    put4Command(func >> 4);
    delay(35);
    put4Command(func >> 4);
    delay(35);
    func = FUNC; // set 4-bit mode
    put4Command(func >> 4);
    delay(35);
    if (rows > 1) {
      func = FUNC_N;
      putCommand(func);
      delay(35);
    }
    display(true); // lcd initializtion
    lcdCursor(false);
    cursorBlink(false);

    displayMode = ENTRY | ENTRY_ID;
    putCommand(displayMode);
    putCommand(CDSHIFT | MOVERIGHT);
    backLightON();
    home();
    lcdClear();
  }

  // for sending data/cmds
  public void sendDataCmd(int data) {
    int d4 = data & 0xf0;
    int currentValue = pcf.getCurrentValue();
    pcf.writeByte(d4 | (currentValue & 0x0f));
    strobe();
    currentValue = pcf.getCurrentValue();
    d4 = (data << 4) & 0xf0;
    pcf.writeByte(d4 | (currentValue & 0x0f));
    strobe();
  }

  // send command
  public void putCommand(int cmd) {
    pcf.digitalWrite(rsPin, 0);
    sendDataCmd(cmd);
    delay(2);
  }

  public void put4Command(int command) {
    int currentValue = pcf.getCurrentValue();
    pcf.digitalWrite(rsPin, 0);
    pcf.writeByte(((command << 4) & 0xf0) | (currentValue & 0x0f));
    strobe();
  }

  // pulse enable
  public void strobe() {
    pcf.digitalWrite(enPin, 1);
    pcf.digitalWrite(enPin, 0);
  }

  // send a data byte to be displayed on the display.
  public void putChar(char data) {
    pcf.digitalWrite(rsPin, 1);
    sendDataCmd(data);
  }

  // Send a string to be displayed on the display.
  public void puts(String str) {
    for (int i = 0; i < str.length(); i++) {
      putChar(str.charAt(i));
    }
  }

  // turn display, cursor, cursor blinking on/off
  public void display(boolean state) {
    if (state) {
      control |= DISPLAY_CTRL;
    } else {
      control &= ~DISPLAY_CTRL;
    }
    putCommand(CTRL | control);
  }

  public void lcdCursor(boolean state) {
    if (state) {
      control |= CURSOR_CTRL;
    } else {
      control &= ~CURSOR_CTRL;
    }
    putCommand(CTRL | control);
  }

  public void cursorBlink(boolean state) {
    if (state) {
      control |= BLINK_CTRL;
    } else {
      control &= ~BLINK_CTRL;
    }
    putCommand(CTRL | control);
  }

  // set the position of the cursor on the display
  public void position(int x, int y) {
    constrain(x, 0, cols);
    constrain(y, 0, rows);
    putCommand(x + (DDRAM | rowOff[y]));
  }

  // Home the cursor
  public void home() {
    putCommand(HOME);
  }

  // clear the screen
  public void lcdClear() {
    putCommand(CLEAR);
    putCommand(HOME);
  }

  // turn on the backLight
  public void backLightON() {
    pcf.digitalWrite(3, 1);
  }

  // turn off the backLight
  public void backLightOFF() {
    pcf.digitalWrite(3, 0);
  }

  // scroll the display a unit to left
  public void scrollDisplayLeft() {
    putCommand(CDSHIFT | DISPLAYMOVE | MOVELEFT);
  }

  // scroll the display a unit to right
  public void scrollDisplayRight() {
    putCommand(CDSHIFT | DISPLAYMOVE | MOVERIGHT);
  }

  // text flows left to right
  public void leftToRight() {
    displayMode |= ENTRY_ID;
    putCommand(ENTRY | displayMode);
  }

  // text flows right to left
  public void rightToLeft() {
    displayMode &= ~ENTRY_ID;
    putCommand(ENTRY | displayMode);
  }

  // scroll the display follow the cursor
  public void autoScroll() {
    displayMode |= ENTRY_SH;
    putCommand(ENTRY | displayMode);
  }

  public void noAutoScroll() {
    displayMode &= ~ENTRY_SH;
    putCommand(ENTRY | displayMode);
  }
}

public class I2CLCD1602 {
  public static void main(String[] args) throws Exception {
    PCF8574 pcf = new PCF8574(0x27); // or 0x3F
    Freenove_LCD1602 lcd;
    lcd = new Freenove_LCD1602(pcf);
    lcd.position(0, 0); // show time on the lcd display
    lcd.puts("Hello World.");
    try {
      int count = 0;
      while (true) {
        String buf = "Count: " + count;
        lcd.position(0, 1); // show time on the lcd display
        lcd.puts(buf);
        Thread.sleep(1000);
        count++;
      }
    } catch (InterruptedException e) {
      Thread.currentThread().interrupt();
    }
  }
}

Constructor, assigns the I2C bus to bus, and calls the constructor function to initialize the I2C bus.

public IIC(int bus) {
  this.bus = bus;
  constructor();
}

public IIC(String s) {
  String b = s.split("i2c-")[1];
  try {
    this.bus = Integer.parseInt(b);
  } catch (Exception e) {
    this.bus = 1;
  }
  constructor();
}

I2C constructor, initialize the I2C bus.

private void constructor() {
  pi4j = Pi4J.newAutoContext();
  i2CProvider = pi4j.provider("linuxfs-i2c");
  i2cConfigBuilder = I2C.newConfigBuilder(pi4j).bus(bus);
}

I2C bus acquisition function. Calling the list() function can obtain the names of all I2C buses currently existing on the Raspberry Pi.

public static String[] list() {
  ArrayList<String> devs = new ArrayList<String>();
  File dir = new File("/dev");
  File[] files = dir.listFiles();
  if (files != null) {
    for (File file : files) {
      if (file.getName().startsWith("i2c-")) {
        devs.add(file.getName());
      }
    }
  }
  String[] tmp = devs.toArray(new String[devs.size()]);
  Arrays.sort(tmp);
  return tmp;
}

Use the pi4j library to repackage the I2C functions. These functions refer to the classic usage of Arduino. This is to be compatible with the subsequent PCF8574 class and Freenove_LCD1602 class, making it easier to drive LCD1602.

public void beginTransmission(int address) {
  if (i2cConfig == null) {
    i2cConfig = i2cConfigBuilder.device(address).build();
  }

  if (i2c == null) {
    i2c = i2CProvider.create(i2cConfig);
  }
}

public void write(int b) {
  i2c.write(b);
}

public byte read() {
  return i2c.readByte();
}

public byte[] read(int size) {
  return i2c.readByteBuffer(size).array();
}

public void endTransmission() {
  i2c.close();
}

The following are the two classes we wrote for LCD1602 in reference to Arduino. Here, we do not go into too much detail here. If you are interested in this code, you can use Geany to view the code.

class PCF8574 {
  ......
}

class Freenove_LCD1602 {
  ......
}

Initialize PCF8574 and Freenove_LCD1602 classes, and assign the value to LCD.

PCF8574 pcf = new PCF8574(0x27); // or 0x3F
Freenove_LCD1602 lcd;
lcd = new Freenove_LCD1602(pcf);

At the first lin of LCD1602, print the character “Hello World”.

lcd.position(0, 0); // show time on the lcd display
lcd.puts("Hello World.");

Print the character “Count” and the counts number at the second line every one second.

int count = 0;
while (true) {
  String buf = "Count: " + count;
  lcd.position(0, 1); // show time on the lcd display
  lcd.puts(buf);
  Thread.sleep(1000);
  count++;
}

In Java, an InterruptedException is thrown when a thread’s waiting, sleeping (e.g., using ‘Thread.sleep()’), or other blocking operations are interrupted. When a thread is interrupted, its interrupted status is set to true, and any of these blocking operations will result in an ‘InterruptedException’ being thrown.

When ‘InterruptedException’ is capured, ‘Thread.currentThread().interrupt()’ is called keep the interrupt status, so that the thread can respond to the interruption request appropriately.

} catch (InterruptedException e) {
  Thread.currentThread().interrupt();
}
