Chapter 14 Manual Control
In the Head Mode, the car’s forward direction is based on the orientation of the ultrasonic module, and it can translate in various directions. For controlling the movement, the left joystick modulates the car’s translational direction and speed, whereas the right joystick governs the car’s rotational direction and velocity. Operating both joysticks simultaneously enables the car to execute circular movements.
Circuit

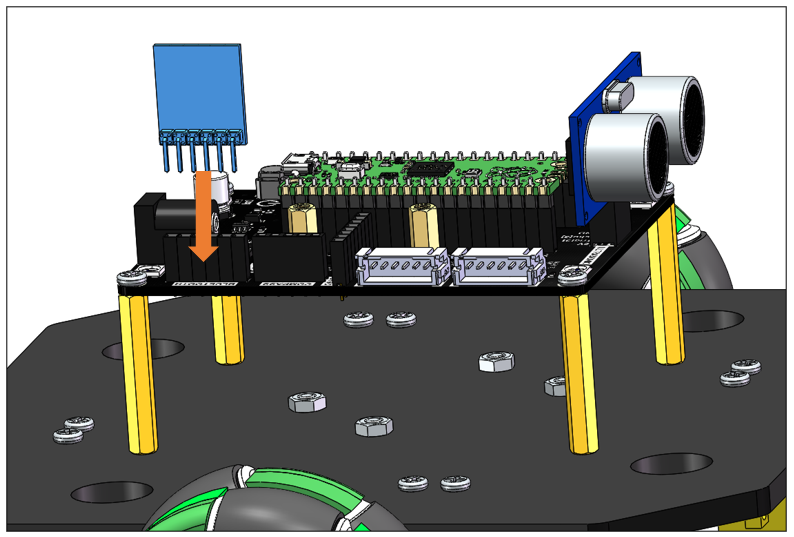

In this chapter, we use the assembled car with the Bluetooth module connected. Please refer to Chapter 1 Car Assembly for the detailed assembly process.
Sketch

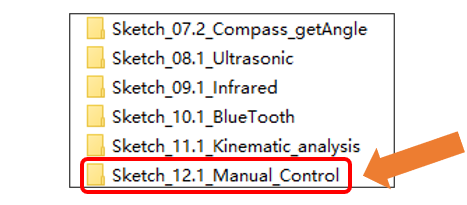

Open “Sketch_12.1_Manual_Control” folder in “Freenove Four-wheeled omniwheel Car Kit for Raspberry Pi picoSketches” and then double-click “Sketch_12.1_Manual Control.ino”.

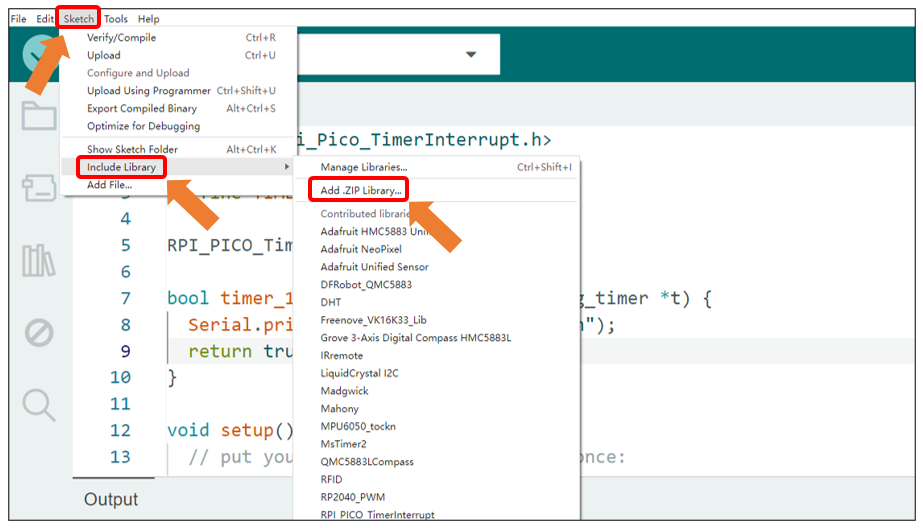

Open Arduino IDE, click Sketch on Menu bar -> Include Library -> Add .ZIP library.

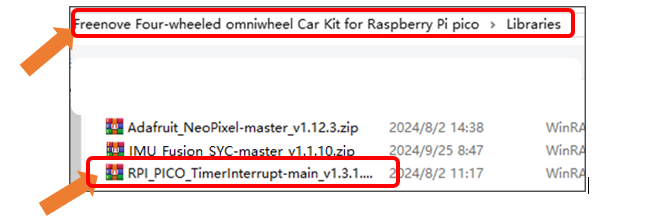

Open “RPI_PICO_TimerInterrupt-main_v1.3.1.zip” under the directory “Freenove Four-wheeled omniwheel Car Kit for Raspberry Pi pico\Libraries”.
Code
Sketch_12.1_Manual_Control
1/**********************************************************************
2 Filename : Sketch_12.1_Manual_Control
3 Description : Use Raspberry Pi Pico implement the Manual control of the car
4 Auther : www.freenove.com
5 Modification: 2024/08/23
6**********************************************************************/
7#include <RPi_Pico_TimerInterrupt.h>
8
9#include <Arduino.h>
10#include "Motor.h"
11#include "Encoder.h"
12#include <Wire.h>
13#include "Pid.h"
14#include "SoftwareSerial.h"
15
16#define TIMER0_INTERVAL_MS 1000
17
18int turn_speed, turn_location;
19
20String CmdArray[8];
21int paramters[8];
22int bluetooth_state = 0, angle_out;
23
24int speed_out = 0, speed1val, speed2val, speed3val, speed4val;
25
26RPI_PICO_Timer ITimer0(0);
27SoftwareSerial bluetooth(1, 0);
28
29void Car_Control() {
30 if (paramters[1] == 0 && paramters[2] == 0) {
31 angle_out = 0;
32 speed_out = 0;
33 }else // If the parameters are not equal to 0
34 {
35 angle_out = paramters[1];
36 speed_out = paramters[2];
37 }
38 if (paramters[1] == 0 && paramters[2] == 0 && paramters[3] == 0 && paramters[4] == 0) {
39 turn_speed = 0;
40 turn_location = 0;
41 } else {
42 turn_speed = paramters[4]; // Rotation speed
43 turn_location = paramters[3]; // Direction of rotation
44 }
45}
46
47bool timer_1ms_control(struct repeating_timer *t) {
48 // 5ms detects and accumulates the encoder data once
49 if (millis() % 5 == 0) {
50 Getencoder_Data();
51 speed_add();
52 }
53 if (millis() % 15 == 0) {
54 speed_calculate(); // Find the average speed and filter the burrs
55 Turn_Control(speed_out, angle_out, turn_speed, turn_location);
56 }
57 return true;
58}
59
60void setup() {
61 // put your setup code here, to run once:
62 // Set the serial port baud rate to 9600
63 Serial.begin(9600);
64 bluetooth.begin(115200);
65 // Encoder initialization
66 Encoder_Init();
67
68 bluetooth.println("AT+NAME=BT05"); // Change Bluetooth device name
69 delay(200);
70
71 // Timer interrupt setting
72 ITimer0.attachInterruptInterval(TIMER0_INTERVAL_MS, timer_1ms_control);
73
74 Motor_init(); // Motor initialization
75}
76
77void loop() {
78 // Bluetooth processing
79 if (bluetooth.available() > 0) { // If the serial port receives data
80 String message = bluetooth.readStringUntil('\n'); // Get the transferred instruction
81 if(message == "CONNECT OK\r")
82 {
83 bluetooth_state = 1;
84 Serial.println("Bluetooth connected");
85 }
86 }
87 while(bluetooth_state)
88 {
89 if (bluetooth.available() > 0) { // If the serial port receives data
90 String message = bluetooth.readStringUntil('\n'); // Get the transmitted instruction
91 Serial.println(message); // print order
92
93 Get_Command(message);
94 if(message == "DISCONNECT\r")
95 {
96 bluetooth_state = 0;
97 Serial.println("Bluetooth disconnected");
98 }
99 if(CmdArray[0] == CMD_MOTOR_Bluetooth)
100 {
101 Car_Control();
102 }
103 memset(CmdArray, 0, sizeof(CmdArray));
104 memset(paramters, 0, sizeof(paramters));
105 }
106 }
107}
108
109void Get_Command(String inputStringTemp) {
110 // Gets the instruction length
111 int string_length = inputStringTemp.length() + 1;
112 char str[string_length];
113 // Converts an array of String type to a Char type array
114 inputStringTemp.toCharArray(str, string_length);
115 char *token = strtok(str, INTERVAL_CHAr); // Split the array
116 CmdArray[0] = String(token[0]); // Put the command into an array
117 for (int i = 0; i < 5; i++) {
118 if (token != NULL) {
119 // Continue splitting the array until # is not detected
120 token = strtok(NULL, INTERVAL_CHAr);
121 }
122 // Convert the instruction to integer type
123 paramters[i + 1] = atoi(token);
124 }
125}
126
127void speed_add() {
128 speed1val += speed1;
129 speed2val += speed2;
130 speed3val += speed3;
131 speed4val += speed4;
132}
133
134void speed_calculate() {
135 speed1 = map(speed1val / 3,0,48,0,100);
136 speed2 = map(speed2val / 3,0,48,0,100);
137 speed3 = map(speed3val / 3,0,48,0,100);
138 speed4 = map(speed4val / 3,0,48,0,100);
139
140 speed1val = 0;
141 speed2val = 0;
142 speed3val = 0;
143 speed4val = 0;
144}
Motor.cpp
1void Turn_Control(int speed_v,int speed_a,int angle_v,int location)
2{
3 vx = - speed_v * sin ( speed_a * PI / 180 );
4 vy = speed_v * cos ( speed_a * PI / 180 );
5 if( location >= 0 && location < 180)
6 {
7 angle_v = -angle_v;
8 }
9 v1 = -vx + angle_v;
10 v2 = -vy + angle_v;
11 v3 = vx + angle_v;
12 v4 = vy + angle_v;
13 // Speed PID control
14 pid_v1 = Speed1_PID(v1,speed1);
15 pid_v2 = Speed2_PID(v2,speed2);
16 pid_v3 = Speed3_PID(v3,speed3);
17 pid_v4 = Speed4_PID(v4,speed4);
18 Motor_direction();
19}
After downloading the code, open Freenove APP on your phone and connect it to the Bluetooth of the car. For installing the APP and connecting Bluetooth, please refer to Introduction to the APP

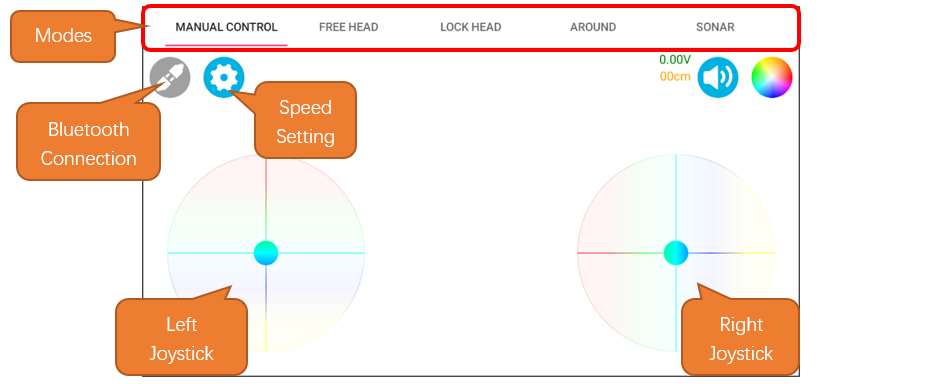

Interface Introduction
Operation Description

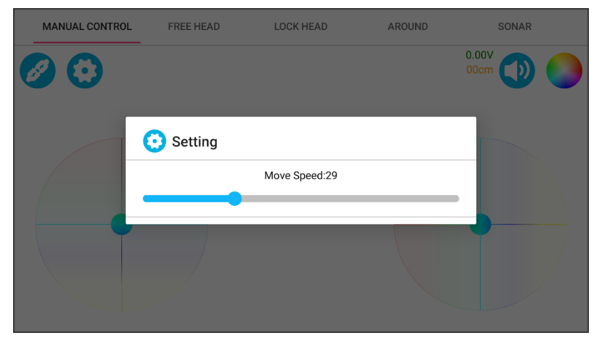

At the speed setting interface, you can set the maximum speed of the car. The range is from 0 to 100.

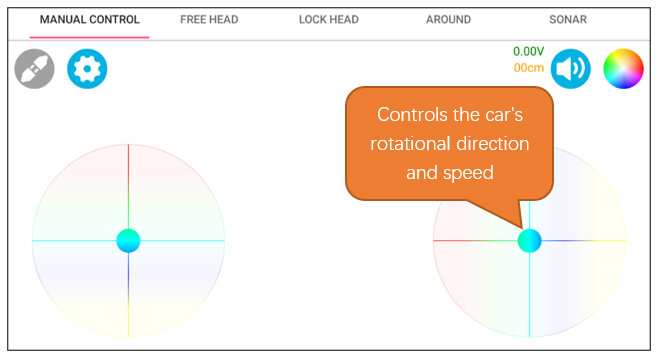

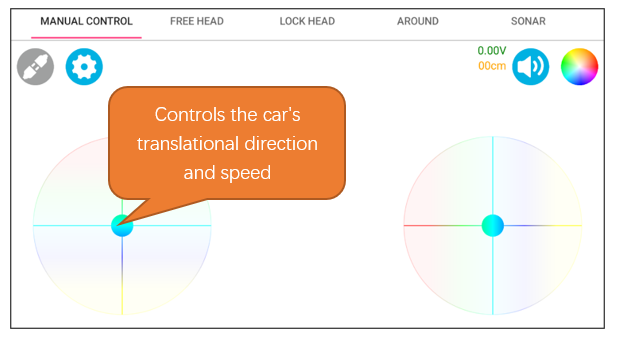

When only the left joystick is operated, it controls the car’s translational direction and speed. When it is released, the car stops moving.
When only the right joystick is operated, it controls the car’s rotational direction and speed. When it is released, the car stops moving.

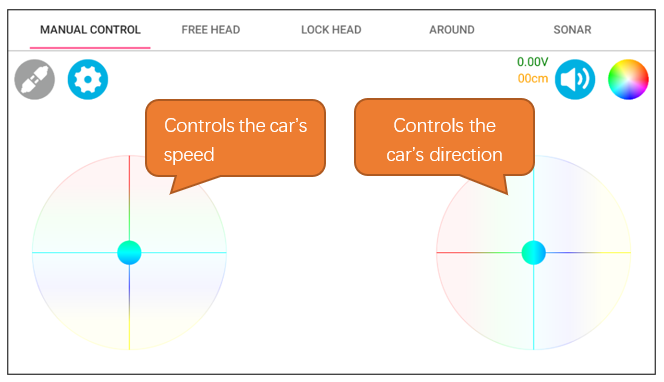

Operating both joysticks simultaneously enables the car to execute circular movements, with the left controls the speed and the right controls the direction.
Code Explanation
Call the ‘Get_Command()’ function to parse the commands sent by the APP, storing integer data into the ‘parameters’ array and character data into the ‘cmdArray’ array.
1void Get_Command(String inputStringTemp) {
2 // Gets the instruction length
3 int string_length = inputStringTemp.length() + 1;
4 char str[string_length];
5 // Converts an array of String type to a Char type array
6 inputStringTemp.toCharArray(str, string_length);
7 char *token = strtok(str, INTERVAL_CHAr); // Split the array
8 CmdArray[0] = String(token[0]); // Put the command into an array
9 for (int i = 0; i < 5; i++) {
10 if (token != NULL) {
11 // Continue splitting the array until # is not detected
12 token = strtok(NULL, INTERVAL_CHAr);
13 }
14 // Convert the instruction to integer type
15 paramters[i + 1] = atoi(token);
16 }
17}
Call the ‘Car_Control()’ function to control the car to perform corresponding actions according to the commands. For specific command protocols, please refer to the FNK0097 firmware communication protocol.
1void Car_Control() {
2 if (paramters[1] == 0 && paramters[2] == 0) {
3 angle_out = 0;
4 speed_out = 0;
5 }else // If the parameters are not equal to 0
6 {
7 angle_out = paramters[1];
8 speed_out = paramters[2];
9 }
10 if (paramters[1] == 0 && paramters[2] == 0 && paramters[3] == 0 && paramters[4] == 0) {
11 turn_speed = 0;
12 turn_location = 0;
13 } else {
14 turn_speed = paramters[4]; // Rotation speed
15 turn_location = paramters[3]; // Direction of rotation
16 }
17}
Calculate the current speed of the car every 15 milliseconds and call the function ‘Turn_Control()’ to control the movement of the car.
1if (millis() % 15 == 0) {
2 speed_calculate(); // Find the average speed and filter the burrs
3 Turn_Control(speed_out, angle_out, turn_speed, turn_location);
4}
Perform kinematic decomposition on the car to calculate the speed of each wheel and incorporate PID control.
1void Turn_Control(int speed_v,int speed_a,int angle_v,int location)
2{
3 vx = - speed_v * sin ( speed_a * PI / 180 );
4 vy = speed_v * cos ( speed_a * PI / 180 );
5 if( location >= 0 && location < 180)
6 {
7 angle_v = -angle_v;
8 }
9 v1 = -vx + angle_v;
10 v2 = -vy + angle_v;
11 v3 = vx + angle_v;
12 v4 = vy + angle_v;
13 // Speed PID control
14 pid_v1 = Speed1_PID(v1,speed1);
15 pid_v2 = Speed2_PID(v2,speed2);
16 pid_v3 = Speed3_PID(v3,speed3);
17 pid_v4 = Speed4_PID(v4,speed4);
18 Motor_direction();
19}
Reference
- char *strtok(char *str, const char *delim);
This function is used to split a string into substrings based on a delimiter.
Str: The string to be split.
Delim: The delimiter character.
- int atoi(const char *str);
This function is used to convert a string to an integer.
Str: The string representing the number to be converted.
- void Turn_Control(int speed_v,int speed_a,int angle_v,int location);
This function is used to control the car’s movement.
Parameters:
speed_v: The movement velocity of the car.
speed_a: The movement angle of the car.
angle_v: The angular velocity of the car.
location: The direction in which the car is turning.
