Chapter 20 Bluetooth Car

Next, let us integrate the functionalities and modules learned in previous chapters using a Bluetooth module, so as to control most features of the car with the phone APP.

Sketch

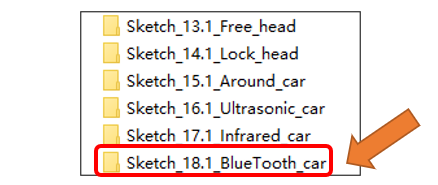

Open “Sketch_18.1_Bluetooth_car” folder in “Freenove_Omni_Wheel_Car_Kit_for_Raspberry_Pi_Pico\Three-Wheel\Sketches” and then double-click “Sketch_18.1_Bluetooth_car.ino”.

../../../_images/Chapter20_00.png

Code

Sketch_18.1_Bluetooth_car.ino

 1/*
 2* Sketch_18.1_BlueTooth_car.ino
 3*
 4* This sample code demonstrates multi-functional control for an omnidirectional smart car,
 5* compatible with both three-wheel and four-wheel omnidirectional structural designs (Switching is implemented via the Car_4_wheel macro in Motor.h).
 6* Key functional modules include: Manual Control, Free head mode, Lock head mode, Around mode, Ultrasonic mode, and RGB lighting effects display.
 7* The code adopts a modular architecture design, enabling seamless switching between three-wheel and four-wheel control algorithms through conditional compilation.
 8* You can select the appropriate mode for functional verification and debugging based on their actual hardware configuration.
 9*
10* Author: [Vegetable-SYC]
11* Date:   [2025-04-30]
12*/
13
14#include "Bluetooth.h"
15#include "User_TIM.h"
16
17void setup() {
18  // put your setup code here, to run once:
19  Serial.begin(9600);                 // Set the serial port baud rate to 9600
20  BlueTooth_Init();                   // Encoder initialization
21  Encoder_Init();
22  IMU_Init();
23  Buzzer_Setup();                     // Buzzer initialization
24  WS2812_Setup();                     // WS2812 initialization
25  Motor_init();                       // Motor initialization
26  Ultrasonic_init();                  // Ultrasonic initialization
27  IR_Init();                          // IR initialization
28  uint32_t current_millis = millis();
29  while (millis() - current_millis < 500) {
30    IMU_GetData();
31  }
32  tone(PIN_BUZZER, 2000, 200);
33  tim_init();
34}
35
36void loop() {
37  IR_Task();
38  WS2812_Show(ws2812_task_mode);
39  Bluetooth_Control();
40}

After compiling and uploading the sketch, you can control the car’s modes and functionalities with the phone app via Bluetooth. To install the APP, please refer to Freenove app
