Chapter 13 Servo
Previously, we learned how to control the speed and rotational direction of a DC Motor. In this chapter, we will learn about Servos which are a rotary actuator type motor that can be controlled rotate to specific angles.
Project Sweep
First, we need to learn how to make a Servo rotate.
Component knowledge

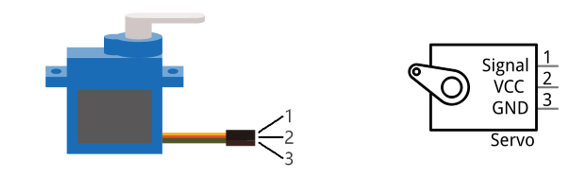

Servo
Servo is a compact package which consists of a DC Motor, a set of reduction gears to provide torque, a sensor and control circuit board. Most Servos only have a 180-degree range of motion via their “horn”. Servos can output higher torque than a simple DC Motor alone and they are widely used to control motion in model cars, model airplanes, robots, etc. Servos have three wire leads which usually terminate to a male or female 3-pin plug. Two leads are for electric power: Positive (2-VCC, Red wire), Negative (3-GND, Brown wire), and the signal line (1-Signal, Orange wire) as represented in the Servo provided in your Kit.
We will use a 50Hz PWM signal with a duty cycle in a certain range to drive the Servo. The lasting time 0.5ms-2.5ms of PWM single cycle high level corresponds to the Servo angle 0 degrees - 180 degree linearly. Part of the corresponding values are as follows:
Note
the lasting time of high level corresponding to the servo angle is absolute instead of accumulating. For example, the high level time lasting for 0.5ms correspond to the 0 degree of the servo. If the high level time lasts for another 1ms, the servo rotates to 45 degrees.
High level time |
Servo angle |
|---|---|
0.5ms |
0 degree |
1ms |
45 degree |
1.5ms |
90 degree |
2ms |
135 degree |
2.5ms |
180 degree |
When you change the Servo signal value, the Servo will rotate to the designated angle.
Component List
Freenove Projects Board for Raspberry Pi |
|
Raspberry Pi |
GPIO Ribbon Cable |
Jumper Wire |
Servo |
Circuit

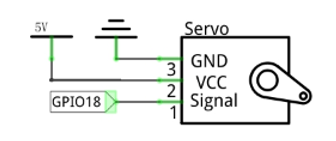

Schematic diagram |
|

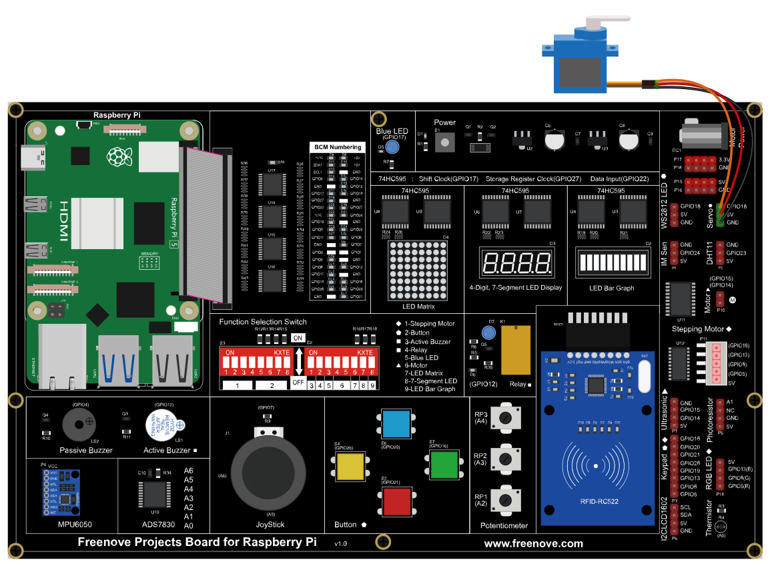

Hardware connection: |
|
Note
If you have any concerns, please send an email to: support@freenove.com
Sketch
In this chapter, we will learn how to control the servo to rotate at the range of 0 to 180 degrees.
Sketch_13_1_Sweep
First, enter where the project is located:
$ cd ~/Freenove_Kit/Pi4j/Sketches/Sketch_13_1_Sweep
Enter the command to run the code.
$ jbang Sweep.java
When the code is running, you can see the servo rotate between 0 to 180 degrees.

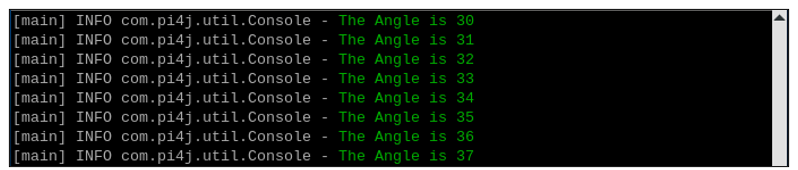

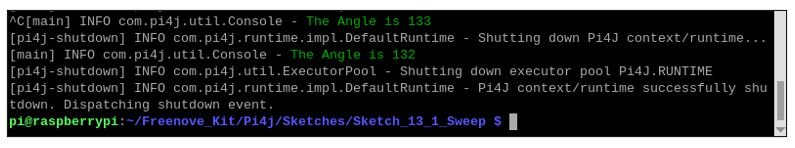

Meanwhile, the messages are printed on the terminal.
Press Ctrl+C to exit the code.

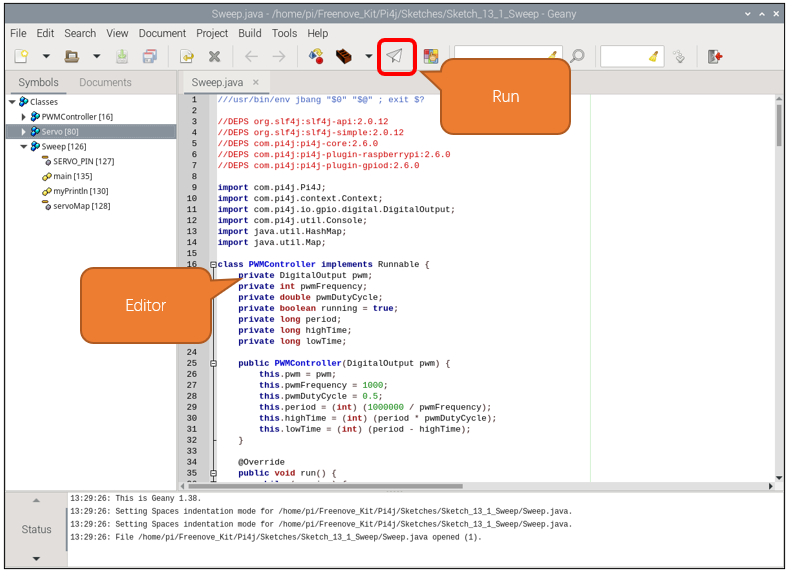

You can run the following command to open the code with Geany to view and edit it.
$ geany Sweep.java
Click the icon to run the code.
If the code fails to run, please check Geany Configuration.
The following is program code:
1///usr/bin/env jbang "$0" "$@" ; exit $?
2
3//DEPS org.slf4j:slf4j-api:2.0.12
4//DEPS org.slf4j:slf4j-simple:2.0.12
5//DEPS com.pi4j:pi4j-core:2.6.0
6//DEPS com.pi4j:pi4j-plugin-raspberrypi:2.6.0
7//DEPS com.pi4j:pi4j-plugin-gpiod:2.6.0
8
9import com.pi4j.Pi4J;
10import com.pi4j.context.Context;
11import com.pi4j.io.gpio.digital.DigitalOutput;
12import com.pi4j.util.Console;
13import java.util.HashMap;
14import java.util.Map;
15
16class PWMController implements Runnable {
17 private DigitalOutput pwm;
18 private int pwmFrequency;
19 private double pwmDutyCycle;
20 private boolean running = true;
21 private long period;
22 private long highTime;
23 private long lowTime;
24
25 public PWMController(DigitalOutput pwm) {
26 this.pwm = pwm;
27 this.pwmFrequency = 1000;
28 this.pwmDutyCycle = 0.5;
29 this.period = (int) (1000000 / pwmFrequency);
30 this.highTime = (int) (period * pwmDutyCycle);
31 this.lowTime = (int) (period - highTime);
32 }
33
34 @Override
35 public void run() {
36 while (running) {
37 if (highTime != 0) {
38 pwm.high();
39 delayUs(highTime);
40 }
41 if (lowTime != 0) {
42 pwm.low();
43 delayUs(lowTime);
44 }
45 }
46 }
47
48 public void setPwmFrequency(int frequency) {
49 if (frequency != 0) {
50 this.pwmFrequency = frequency;
51 this.period = (int) (1000000 / pwmFrequency);
52 this.highTime = (int) (period * pwmDutyCycle);
53 this.lowTime = (int) (period - highTime);
54 } else {
55 this.pwmFrequency = 0;
56 this.period = (int) (1000);
57 this.highTime = (int) (0);
58 this.lowTime = (int) (period - highTime);
59 }
60 }
61
62 public void setPwmDutyCycle(double dutyCycle) {
63 this.pwmDutyCycle = dutyCycle;
64 this.highTime = (int) (period * pwmDutyCycle);
65 this.lowTime = (int) (period - highTime);
66 }
67
68 private void delayUs(long us) {
69 long startTime = System.nanoTime();
70 long endTime = startTime + (us * 1000);
71 while (System.nanoTime() < endTime) {
72 }
73 }
74
75 public void requestStop() {
76 running = false;
77 }
78}
79
80class Servo {
81 private final int pin;
82 private final PWMController pwmController;
83 private final Context pi4j;
84
85 public Servo(int pin) throws Exception {
86 this.pin = pin;
87 this.pi4j = Pi4J.newAutoContext();
88 DigitalOutput pwm = pi4j.dout().create(pin);
89 this.pwmController = new PWMController(pwm);
90
91 Thread pwmThread = new Thread(pwmController, "PWM Controller for Servo on PIN " + pin);
92 pwmThread.start();
93
94 Runtime.getRuntime().addShutdownHook(new Thread(() -> {
95 pwmController.requestStop();
96 try {
97 pwmThread.join();
98 } catch (InterruptedException e) {
99 Thread.currentThread().interrupt();
100 }
101 }));
102 }
103
104 public void setFrequency(int frequency) {
105 pwmController.setPwmFrequency(frequency);
106 }
107
108 public void setDutyCycle(double dutyCycle) {
109 pwmController.setPwmDutyCycle(dutyCycle);
110 }
111
112 public void setAngle(int angle) {
113 if (angle > 180 || angle < 0) {
114 return;
115 }
116 double dutyCycle = (((double) angle / 180.0 * 2) + 0.5) / 20;
117 pwmController.setPwmDutyCycle(dutyCycle);
118 }
119
120 public void shutdown() {
121 pwmController.requestStop();
122 pi4j.shutdown();
123 }
124}
125
126public class Sweep {
127 private static int SERVO_PIN = 18;
128 private static final Map<Integer, Servo> servoMap = new HashMap<>();
129
130 public static void myPrintln(String format, Object... args) {
131 Console console = new Console();
132 console.println(String.format("\u001B[32m" + format + "\u001B[0m", args));
133 }
134
135 public static void main(String[] args) throws Exception {
136 servoMap.put(SERVO_PIN, new Servo(SERVO_PIN));
137 Servo servo = servoMap.get(SERVO_PIN);
138 servo.setFrequency(50);
139 servo.setDutyCycle(0.075);
140
141 myPrintln("Start sweeping ...");
142 Thread.sleep(3000);
143
144 try {
145 while (true) {
146 for (int i = 0; i < 180; i++) {
147 servo.setAngle(i);
148 myPrintln("The Angle is %d", i);
149 Thread.sleep(20);
150 }
151 for (int i = 180; i > 0; i--) {
152 servo.setAngle(i);
153 myPrintln("The Angle is %d", i);
154 Thread.sleep(20);
155 }
156 }
157 } finally {
158 if (servo != null) {
159 servo.shutdown();
160 }
161 }
162 }
163}
Servo constructor, initializes the servo control pins, and adds a JVM shutdown hook to ensure that the PWM controller and Pi4J context are properly closed when the program exits.
1public Servo(int pin) throws Exception {
2 this.pin = pin;
3 this.pi4j = Pi4J.newAutoContext();
4 DigitalOutput pwm = pi4j.dout().create(pin);
5 this.pwmController = new PWMController(pwm);
6
7 Thread pwmThread = new Thread(pwmController, "PWM Controller for Servo on PIN " + pin);
8 pwmThread.start();
9
10 Runtime.getRuntime().addShutdownHook(new Thread(() -> {
11 pwmController.requestStop();
12 try {
13 pwmThread.join();
14 } catch (InterruptedException e) {
15 Thread.currentThread().interrupt();
16 }
17 }));
18}
Set the PWM duty cycle according to the angle to control the servo to rotate to the specified position.
1public void setAngle(int angle) {
2 if (angle > 180 || angle < 0) {
3 return;
4 }
5 double dutyCycle = (((double) angle / 180.0 * 2) + 0.5) / 20;
6 pwmController.setPwmDutyCycle(dutyCycle);
7}
Initialize the servo controller and store it in servoMap.
1servoMap.put(SERVO_PIN, new Servo(SERVO_PIN));
Get the servo controller from servoMap.
1Servo servo = servoMap.get(SERVO_PIN);
The signal period of the servo is 20ms. According to the formula f=1/T, the frequency of the servo is set to 50Hz.
To control the servo to rotate to 0 degrees, a 1.5ms high level is required. 1.5ms/20ms=0.075, so the duty cycle of the servo is 0.075. Similarly, if you want the servo to rotate to 180 degrees, a 2.5ms high level is required, 2.5ms/20ms=0.375. You only need to modify the duty cycle value to control the rotation of the servo.
1servo.setFrequency(50);
2servo.setDutyCycle(0.075);
The main code controls the servo to rotate between 0-180 degrees and prints prompt information on the terminal interface.
1while (true) {
2 for (int i = 0; i < 180; i++) {
3 servo.setAngle(i);
4 myPrintln("The Angle is %d", i);
5 Thread.sleep(20);
6 }
7 for (int i = 180; i > 0; i--) {
8 servo.setAngle(i);
9 myPrintln("The Angle is %d", i);
10 Thread.sleep(20);
11 }
12}
Project Knob
In this project, we will learn how to control the servo with a potentiometer.
Component List
Freenove Projects Board for Raspberry Pi |
|
Raspberry Pi |
GPIO Ribbon Cable |
Jumper Wire |
Servo |
Circuit

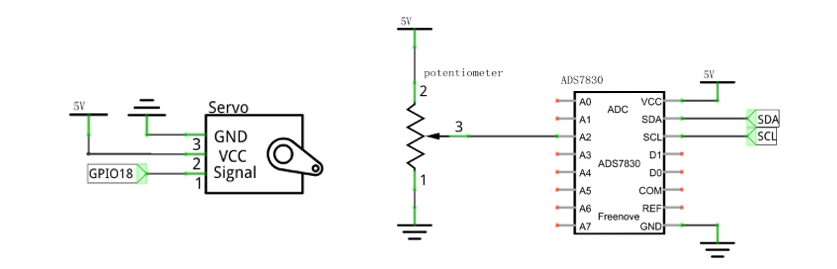

Schematic diagram |
|

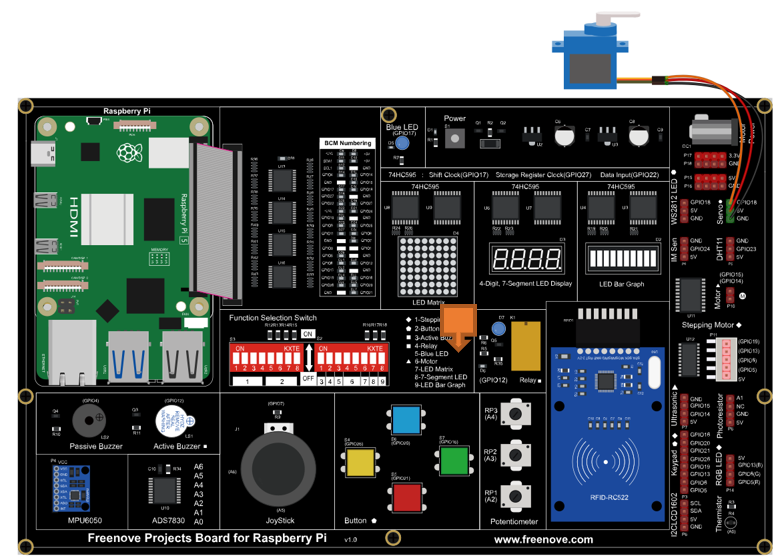

Hardware connection: |
|
Sketch
In this project, we will control the servo to rotate to a designated position by rotating the potentiometer.
Sketch_13_2_Knob
First, enter where the project is located:
cd ~/Freenove_Kit/Pi4j/Sketches/Sketch_13_2_Knob
Enter the command to run the code.
jbang Knob.java
When the code is running, rotating the potentiometer and you can see the servo angle change.

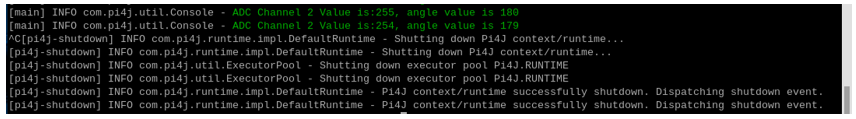

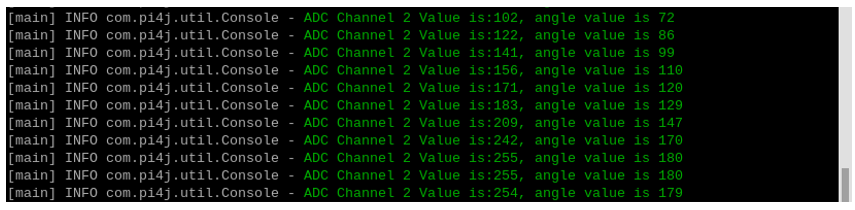

On the terminal, you can see messages printed.
Press Ctrl+C to exit the program.
You can run the following command to open the code with Geany to view and edit it.

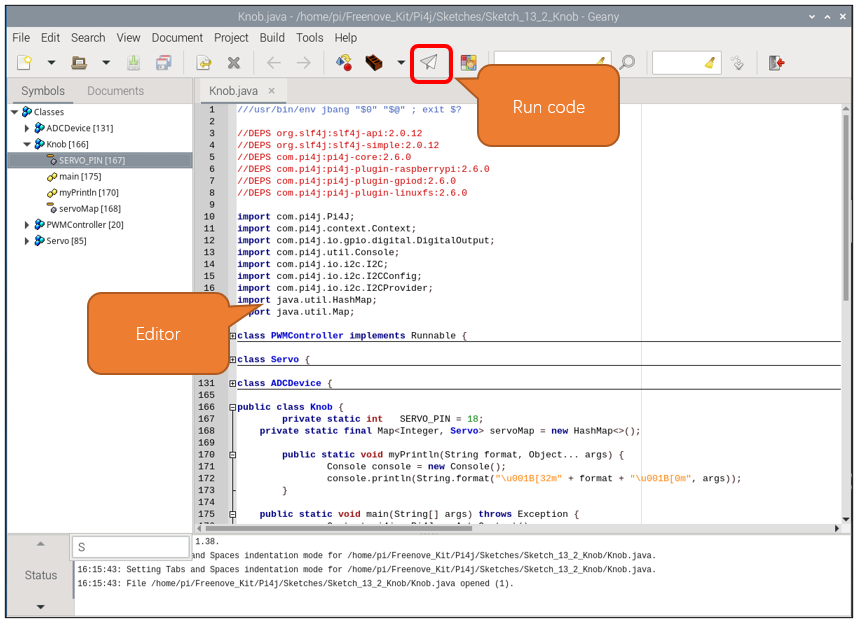

geany Knob.java
Click the icon to run the code.
If the code fails to run, please check Geany Configuration.
The following is program code:
1///usr/bin/env jbang "$0" "$@" ; exit $?
2
3//DEPS org.slf4j:slf4j-api:2.0.12
4//DEPS org.slf4j:slf4j-simple:2.0.12
5//DEPS com.pi4j:pi4j-core:2.6.0
6//DEPS com.pi4j:pi4j-plugin-raspberrypi:2.6.0
7//DEPS com.pi4j:pi4j-plugin-gpiod:2.6.0
8//DEPS com.pi4j:pi4j-plugin-linuxfs:2.6.0
9
10import com.pi4j.Pi4J;
11import com.pi4j.context.Context;
12import com.pi4j.io.gpio.digital.DigitalOutput;
13import com.pi4j.util.Console;
14import com.pi4j.io.i2c.I2C;
15import com.pi4j.io.i2c.I2CConfig;
16import com.pi4j.io.i2c.I2CProvider;
17import java.util.HashMap;
18import java.util.Map;
19
20class PWMController implements Runnable {
21 private DigitalOutput pwm;
22 private int pwmFrequency;
23 private double pwmDutyCycle;
24 private boolean running = true;
25 private long period;
26 private long highTime;
27 private long lowTime;
28
29 public PWMController(DigitalOutput pwm) {
30 this.pwm = pwm;
31 this.pwmFrequency = 1000;
32 this.pwmDutyCycle = 0.5;
33 this.period = (int) (1000000 / pwmFrequency);
34 this.highTime = (int) (period * pwmDutyCycle);
35 this.lowTime = (int) (period - highTime);
36 }
37
38 @Override
39 public void run() {
40 while (running) {
41 if(highTime!=0){
42 pwm.high();
43 delayUs(highTime);
44 }
45 if(lowTime!=0){
46 pwm.low();
47 delayUs(lowTime);
48 }
49 }
50 }
51
52 public void setPwmFrequency(int frequency) {
53 if(frequency!=0){
54 this.pwmFrequency = frequency;
55 this.period = (int) (1000000 / pwmFrequency);
56 this.highTime = (int) (period * pwmDutyCycle);
57 this.lowTime = (int) (period - highTime);
58 }
59 else{
60 this.pwmFrequency = 0;
61 this.period = (int) (1000);
62 this.highTime = (int) (0);
63 this.lowTime = (int) (period - highTime);
64 }
65 }
66
67 public void setPwmDutyCycle(double dutyCycle) {
68 this.pwmDutyCycle = dutyCycle;
69 this.highTime = (int) (period * pwmDutyCycle);
70 this.lowTime = (int) (period - highTime);
71 }
72
73 private void delayUs(long us) {
74 long startTime = System.nanoTime();
75 long endTime = startTime + (us * 1000);
76 while (System.nanoTime() < endTime) {
77 }
78 }
79
80 public void requestStop() {
81 running = false;
82 }
83}
84
85class Servo {
86 private final int pin;
87 private final PWMController pwmController;
88 private final Context pi4j;
89
90 public Servo(int pin) throws Exception {
91 this.pin = pin;
92 this.pi4j = Pi4J.newAutoContext();
93 DigitalOutput pwm = pi4j.dout().create(pin);
94 this.pwmController = new PWMController(pwm);
95
96 Thread pwmThread = new Thread(pwmController, "PWM Controller for Servo on PIN " + pin);
97 pwmThread.start();
98
99 Runtime.getRuntime().addShutdownHook(new Thread(() -> {
100 pwmController.requestStop();
101 try {
102 pwmThread.join();
103 } catch (InterruptedException e) {
104 Thread.currentThread().interrupt();
105 }
106 }));
107 }
108
109 public void setFrequency(int frequency) {
110 pwmController.setPwmFrequency(frequency);
111 }
112
113 public void setDutyCycle(double dutyCycle) {
114 pwmController.setPwmDutyCycle(dutyCycle);
115 }
116
117 public void setAngle(int angle){
118 if(angle >180 || angle < 0){
119 return;
120 }
121 double dutyCycle = (((double)angle/180.0*2)+0.5)/20;
122 pwmController.setPwmDutyCycle(dutyCycle);
123 }
124
125 public void shutdown() {
126 pwmController.requestStop();
127 pi4j.shutdown();
128 }
129}
130
131class ADCDevice {
132 private final I2C adcChip;
133 private final int adcChipAddr;
134
135 public ADCDevice(Context pi4j, I2CProvider provider, int adcChipAddr) throws Exception {
136 this.adcChipAddr = adcChipAddr;
137 I2CConfig i2cConfig = I2C.newConfigBuilder(pi4j).id("ADCDevice").bus(1).device(adcChipAddr).build();
138 this.adcChip = provider.create(i2cConfig);
139 }
140
141 public boolean detectI2C() throws Exception {
142 try {
143 adcChip.write(0);
144 byte[] data = new byte[1];
145 int bytesRead = adcChip.read(data, 0, 1);
146 return bytesRead == 1;
147 } catch (Exception e) {
148 return false;
149 }
150 }
151
152 public int analogRead(int chn) {
153 byte command = (byte) (0x84 | (((chn << 2 | chn >> 1) & 0x07) << 4));
154 adcChip.write(command);
155 byte[] data = new byte[1];
156 int bytesRead = adcChip.read(data, 0, 1);
157 if (bytesRead == 1) {
158 int adcValue = data[0] & 0xFF;
159 return adcValue;
160 } else {
161 return -1;
162 }
163 }
164}
165
166public class Knob {
167 private static int SERVO_PIN = 18;
168 private static final Map<Integer, Servo> servoMap = new HashMap<>();
169
170 public static void myPrintln(String format, Object... args) {
171 Console console = new Console();
172 console.println(String.format("\u001B[32m" + format + "\u001B[0m", args));
173 }
174
175 public static void main(String[] args) throws Exception {
176 Context pi4j = Pi4J.newAutoContext();
177 I2CProvider i2CProvider = pi4j.provider("linuxfs-i2c");
178
179 servoMap.put(SERVO_PIN, new Servo(SERVO_PIN));
180
181 Servo servo = servoMap.get(SERVO_PIN);
182 servo.setFrequency(50);
183 servo.setDutyCycle(0.075);
184
185 myPrintln("Start sweeping ...");
186 Thread.sleep(1000);
187 try {
188 int ADC_CHIP_ADDR = 0x48;
189 ADCDevice adcDevice = new ADCDevice(pi4j, i2CProvider, ADC_CHIP_ADDR);
190
191 if (adcDevice.detectI2C()) {
192 int ADC_CHANNEL = 2;
193 while (true) {
194 int adcValue = adcDevice.analogRead(ADC_CHANNEL);
195 int angle = (int)((double)adcValue/255.0*180);
196 if (adcValue != -1) {
197 myPrintln("ADC Channel %d Value is:%d, angle value is %d", ADC_CHANNEL, adcValue, angle);
198 servo.setAngle(angle);
199 } else {
200 myPrintln("Failed to read data from ADC.");
201 }
202 Thread.sleep(100);
203 }
204 } else {
205 myPrintln("ADS7830 device not detected at address 0x" + Integer.toHexString(ADC_CHIP_ADDR));
206 }
207 }
208 finally {
209 if (servo != null) {
210 servo.shutdown();
211 }
212 }
213 }
214}
The ADC value at the potentiometer is obtained every 100 milliseconds and is converted into an angle value, which is provided to the servo angle control function, and a prompt message is printed on the terminal interface.
1if (adcDevice.detectI2C()) {
2 int ADC_CHANNEL = 2;
3 while (true) {
4 int adcValue = adcDevice.analogRead(ADC_CHANNEL);
5 int angle = (int)((double)adcValue/255.0*180);
6 if (adcValue != -1) {
7 myPrintln("ADC Channel %d Value is:%d, angle value is %d", ADC_CHANNEL, adcValue, angle);
8 servo.setAngle(angle);
9 } else {
10 myPrintln("Failed to read data from ADC.");
11 }
12 Thread.sleep(100);
13 }
14}
